物理备份报错：ERROR 9040 (HY000): backup can not start, because log archive status is not doing

chales675 · 2025 年8 月 13 日 11:36

老师好帮忙分析个备份异常的问题
【使用环境】POC验证环境
【 OB or 其他组件】OB
【使用版本】4.3.5.1
【问题描述】
1.现象：执行物理全备报错如下命令
obclient(root@bk_test)[(none)]> alter system backup database plus archivelog;
ERROR 9040 (HY000): backup can not start, because log archive status is not doing.
obclient(root@bk_test)[(none)]> select last_trace_id();
±------------------------------------+
| last_trace_id() |
±------------------------------------+
| Y10B420A100B03-0006337D267562EA-0-0 |
±------------------------------------+
1 row in set (0.001 sec)

obclient(root@bk_test)[(none)]>

2.Y10B420A100B03-0006337D267562EA-0-0 相关日志：
[admin@obdemo2 log]$ grep Y10B420A100B03-0006337D267562EA-0-0 *.log
observer.log:[2025-08-13 11:25:26.284992] INFO [SQL.ENG] execute (ob_alter_system_executor.cpp:2387) [82744][T1006_L0_G0][T1006][Y10B observer.log:[2025-08-13 11:25:26.285062] INFO [SQL.ENG] execute (ob_alter_system_executor.cpp:2416) [82744][T1006_L0_G0][T1006][Y10B observer.log:[2025-08-13 11:25:26.334288] WDIAG [RPC] send (ob_poc_rpc_proxy.h:176) [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337 observer.log:[2025-08-13 11:25:26.334357] WDIAG log_user_error_and_warn (ob_poc_rpc_proxy.cpp:247) [82744][T1006_L0_G0][T1006][Y10B420 observer.log:[2025-08-13 11:25:26.334403] WDIAG [SQL.ENG] execute (ob_alter_system_executor.cpp:2431) [82744][T1006_L0_G0][T1006][Y10B observer.log:[2025-08-13 11:25:26.334553] INFO [SHARE] add_event (ob_event_history_table_operator.h:266) [82744][T1006_L0_G0][T1006][ observer.log:[2025-08-13 11:25:26.334592] WDIAG [SQL] open_cmd (ob_result_set.cpp:68) [82744][T1006_L0_G0][T1006][Y10B420A100B03-00063 observer.log:[2025-08-13 11:25:26.334623] WDIAG [SQL] open (ob_result_set.cpp:127) [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D observer.log:[2025-08-13 11:25:26.334653] WDIAG [SERVER] response_result (ob_sync_cmd_driver.cpp:139) [82744][T1006_L0_G0][T1006][Y10B observer.log:[2025-08-13 11:25:26.334683] WDIAG [SERVER] after_func (ob_query_retry_ctrl.cpp:1068) [82744][T1006_L0_G0][T1006][Y10B420 observer.log:[2025-08-13 11:25:26.334739] WDIAG [SERVER] response_result (ob_sync_cmd_driver.cpp:145) [82744][T1006_L0_G0][T1006][Y10B observer.log:[2025-08-13 11:25:26.334776] INFO [SERVER] send_error_packet (obmp_packet_sender.cpp:373) [82744][T1006_L0_G0][T1006][Y1 observer.log:[2025-08-13 11:25:26.334851] INFO [SERVER] send_error_packet (obmp_packet_sender.cpp:576) [82744][T1006_L0_G0][T1006][Y1 observer.log:[2025-08-13 11:25:26.334886] WDIAG [SERVER] do_process (obmp_query.cpp:1121) [82744][T1006_L0_G0][T1006][Y10B420A100B03-0 observer.log:[2025-08-13 11:25:26.335266] WDIAG [SERVER.OMT] process_one (ob_worker_processor.cpp:81) [82744][T1006_L0_G0][T1006][Y10B observer.log:[2025-08-13 11:25:26.335298] WDIAG [SERVER.OMT] process (ob_worker_processor.cpp:149) [82744][T1006_L0_G0][T1006][Y10B420 trace.log:[2025-08-13 11:25:26.334969] [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D267562EA-0-0] {“trace_id”:“00063c36-b534-8d0 trace.log:[2025-08-13 11:25:26.335005] [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D267562EA-0-0] {“trace_id”:“00063c36-b534-8d0 trace.log:[2025-08-13 11:25:26.335023] [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D267562EA-0-0] {“trace_id”:“00063c36-b534-8d0 trace.log:[2025-08-13 11:25:26.335048] [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D267562EA-0-0] {“trace_id”:“00063c36-b534-8d0 trace.log:[2025-08-13 11:25:26.335065] [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D267562EA-0-0] {“trace_id”:“00063c36-b534-8d0 trace.log:[2025-08-13 11:25:26.335089] [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D267562EA-0-0] {“trace_id”:“00063c36-b534-8d0 trace.log:[2025-08-13 11:25:26.335106] [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D267562EA-0-0] {“trace_id”:“00063c36-b534-8d0 trace.log:[2025-08-13 11:25:26.335134] [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D267562EA-0-0] {“trace_id”:“00063c36-b534-8d0 trace.log:[2025-08-13 11:25:26.335182] [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D267562EA-0-0] {“trace_id”:“00063c36-b534-8d0 trace.log:[2025-08-13 11:25:26.335209] [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D267562EA-0-0] {“trace_id”:“00063c36-b534-8d0 trace.log:[2025-08-13 11:25:26.335237] [82744][T1006_L0_G0][T1006][Y10B420A100B03-0006337D267562EA-0-0] {“trace_id”:“00063c36-b534-8d0 [admin@obdemo2 log]$ 420A100B03-0006337D267562EA-0-0] [lt=19] no backup encryption mode is specified(stmt={stmt_type:204, tenant_id:1006, incremental:false , backup_tenant_ids:[], backup_description:"", compl_log:true, backup_dest:""})
420A100B03-0006337D267562EA-0-0] [lt=53] ObBackupDatabaseExecutor::execute(stmt={stmt_type:204, tenant_id:1006, incremental:false, bac kup_tenant_ids:[], backup_description:"", compl_log:true, backup_dest:""}, arg={tenant_id:1006, initiator_tenant_id:1006, initiator_jo b_id:0, backup_tenant_ids:[], is_incremental:false, backup_dest:"", backup_description:"", is_compl_log:true, encryption_mode:0, passw d:""}, ctx=)
D267562EA-0-0] [lt=48][errcode=-9040] execute rpc fail(addr=“10.16.11.2:2882”, pcode=5123, ret=-9040, timeout=599999741)
A100B03-0006337D267562EA-0-0] [lt=51][errcode=-9040] backup can not start, because log archive status is not doing.
420A100B03-0006337D267562EA-0-0] [lt=26][errcode=-9040] backup_database rpc failed(ret=-9040, arg={tenant_id:1006, initiator_tenant_id :1006, initiator_job_id:0, backup_tenant_ids:[], is_incremental:false, backup_dest:"", backup_description:"", is_compl_log:true, encry ption_mode:0, passwd:""}, dst=“10.16.11.2:2882”)
Y10B420A100B03-0006337D267562EA-0-0] [lt=43] event table add task(ret=0, event_table_name="__all_server_event_history", sql=INSERT INT O all_server_event_history (gmt_create, module, event, name1, value1, name2, value2, name3, value3, name4, value4, value5, value6, s vr_ip, svr_port) VALUES (usec_to_time(1755055526334461), ‘sql’, ‘execute_cmd’, ‘cmd_type’, 204, ‘sql_text’, X’616C7465722073797374656D 206261636B757020646174616261736520706C757320617263686976656C6F67’, ‘return_code’, -9040, ‘tenant_id’, 1006, ‘’, ‘’, ‘10.16.11.3’, 2882 ))
37D267562EA-0-0] [lt=28][errcode=-9040] execute cmd failed(ret=-9040)
267562EA-0-0] [lt=22][errcode=-9040] execute plan failed(ret=-9040)
420A100B03-0006337D267562EA-0-0] [lt=20][errcode=-9040] close result set fail(cret=-9040)
A100B03-0006337D267562EA-0-0] [lt=20][errcode=-9040] [RETRY] check if need retry(v={force_local_retry:false, stmt_retry_times:0, local retry_times:0, err:-9040, err:“OB_BACKUP_CAN_NOT_START”, retry_type:0, client_ret:-9040}, need_retry=false)
420A100B03-0006337D267562EA-0-0] [lt=43][errcode=-9040] result set open failed, check if need retry(ret=-9040, cli_ret=-9040, retry_ct rl.need_retry()=0)
0B420A100B03-0006337D267562EA-0-0] [lt=16] sending error packet(ob_error=-9040, client error=-9040, extra_err_info=NULL, lbt()=“0x9525 fb6 0x10ec8790 0x10e73236 0x9016b00 0x8c6ffbe 0x8c5e4bc 0x8c57866 0x8c5586d 0x8c442cd 0x11090f79 0x22df655e 0x7fa6e0a45ea5 0x7fa6e076e b0d”)
0B420A100B03-0006337D267562EA-0-0] [lt=25] dump txn free route audit_record(value=0, session->get_sessid()=3221786036, session->get_pr oxy_sessid()=725091647708399672)
006337D267562EA-0-0] [lt=23][errcode=-9040] execute query fail(ret=-9040, timeout_timestamp=1755056126284727)
420A100B03-0006337D267562EA-0-0] [lt=22][errcode=-9040] process request fail(ret=-9040)
A100B03-0006337D267562EA-0-0] [lt=23][errcode=-9040] process request fail(ret=-9040)
4-666f-e8fcc7194ea7”,“name”:“close”,“id”:“00063c36-b535-50bb-7ba1-b76bcc23d085”,“start_ts”:1755055526334651,“end_ts”:1755055526334652, “parent_id”:“00063c36-b534-8eb0-fc5a-6324fb9b1f83”,“is_follow”:false}
4-666f-e8fcc7194ea7”,“name”:“cmd_open”,“id”:“00063c36-b534-8eb4-20af-bcadc577c2fa”,“start_ts”:1755055526284980,“end_ts”:17550555263346 21,“parent_id”:“00063c36-b534-8eb2-d7a0-320bb42eb6f0”,“is_follow”:false}
4-666f-e8fcc7194ea7”,“name”:“open”,“id”:“00063c36-b534-8eb2-d7a0-320bb42eb6f0”,“start_ts”:1755055526284978,“end_ts”:1755055526334649," parent_id":“00063c36-b534-8eb0-fc5a-6324fb9b1f83”,“is_follow”:false}
4-666f-e8fcc7194ea7”,“name”:“sql_execute”,“id”:“00063c36-b534-8eb0-fc5a-6324fb9b1f83”,“start_ts”:1755055526284976,“end_ts”:17550555263 34884,“parent_id”:“00063c36-b534-8df3-7426-91d51deda424”,“is_follow”:false}
4-666f-e8fcc7194ea7”,“name”:“resolve”,“id”:“00063c36-b534-8e5b-ad70-1e737bc25a82”,“start_ts”:1755055526284891,“end_ts”:175505552628495 1,“parent_id”:“00063c36-b534-8e1c-80f6-c57a455862eb”,“is_follow”:false}
4-666f-e8fcc7194ea7”,“name”:“parse”,“id”:“00063c36-b534-8e1c-aebe-58ccddaa6405”,“start_ts”:1755055526284828,“end_ts”:1755055526284881, “parent_id”:“00063c36-b534-8e1c-80f6-c57a455862eb”,“is_follow”:false}
4-666f-e8fcc7194ea7”,“name”:“hard_parse”,“id”:“00063c36-b534-8e1c-80f6-c57a455862eb”,“start_ts”:1755055526284828,“end_ts”:175505552628 4973,“parent_id”:“00063c36-b534-8e04-1d56-9ea88e890243”,“is_follow”:false}
4-666f-e8fcc7194ea7”,“name”:“pc_get_plan”,“id”:“00063c36-b534-8e0d-03b7-9c7c3437e27b”,“start_ts”:1755055526284813,“end_ts”:17550555262 84825,“parent_id”:“00063c36-b534-8e04-1d56-9ea88e890243”,“is_follow”:false}
4-666f-e8fcc7194ea7”,“name”:“sql_compile”,“id”:“00063c36-b534-8e04-1d56-9ea88e890243”,“start_ts”:1755055526284804,“end_ts”:17550555262 84975,“parent_id”:“00063c36-b534-8df3-7426-91d51deda424”,“is_follow”:false,“tags”:[{“sql_id”:“3730E3422DAF4713BA298B3D27F16301”},{“dat abase_id”:18446744073709551615},{“sql_text”:“alter system backup database plus archivelog”},{“hit_plan”:false}]}
4-666f-e8fcc7194ea7”,“name”:“mpquery_single_stmt”,“id”:“00063c36-b534-8df3-7426-91d51deda424”,“start_ts”:1755055526284787,“end_ts”:175 5055526334949,“parent_id”:“00063c36-b534-8de6-1843-e61e8ec5b830”,“is_follow”:false}
4-666f-e8fcc7194ea7”,“name”:“com_query_process”,“id”:“00063c36-b534-8de6-1843-e61e8ec5b830”,“start_ts”:1755055526284774,“end_ts”:17550 55526334951,“parent_id”:“00000000-0000-0000-0000-000000000000”,“is_follow”:false,“tags”:[{“err_code”:-9040},{“sess_id”:3221786036},{“a ction_name”:""},{“module_name”:""},{“client_info”:""},{“receive_ts”:1755055526284727},{“log_trace_id”:“YB420A100B03-0006337D267562EA-0 -0”}]}

3.相关备份配置
obclient(root@bk_test)[(none)]> SELECT * FROM oceanbase.dba_OB_ARCHIVELOG\G
*************************** 1. row ***************************
DEST_ID: 1005
ROUND_ID: 4
INCARNATION: 1
DEST_NO: 0
STATUS: STOP
START_SCN: 1750410603314797000
START_SCN_DISPLAY: 2025-06-20 17:10:03.314797
CHECKPOINT_SCN: 1751970028892849002
CHECKPOINT_SCN_DISPLAY: 2025-07-08 18:20:28.892849
COMPATIBLE: 1
BASE_PIECE_ID: 12
USED_PIECE_ID: 30
PIECE_SWITCH_INTERVAL: 86400000000
UNIT_SIZE: 1
COMPRESSION: none
INPUT_BYTES: 9894687298
INPUT_BYTES_DISPLAY: 9.22GB
OUTPUT_BYTES: 9894687298
OUTPUT_BYTES_DISPLAY: 9.22GB
COMPRESSION_RATIO: 1.00
DELETED_INPUT_BYTES: 0
DELETED_INPUT_BYTES_DISPLAY: 0.00MB
DELETED_OUTPUT_BYTES: 0
DELETED_OUTPUT_BYTES_DISPLAY: 0.00MB
COMMENT:
PATH: file:///backupnfs/myobdemo/1744871768/tenant_incarnation_1/1006/clog
1 row in set (0.007 sec)

obclient(root@bk_test)[(none)]> select * from oceanbase.DBA_OB_BACKUP_PARAMETER;
±-----------------±---------------------------------------------------------------------+
| NAME | VALUE |
±-----------------±---------------------------------------------------------------------+
| data_backup_dest | file:///backupnfs/myobdemo/1744871768/tenant_incarnation_1/1006/data |
±-----------------±---------------------------------------------------------------------+
1 row in set (0.011 sec)

【复现路径】问题出现前后相关操作
【附件及日志】推荐使用OceanBase敏捷诊断工具obdiag收集诊断信息,详情参见链接（右键跳转查看）：

【SOP系列 22 】——故障诊断第一步(自助诊断和诊断信息收集)

【备注】基于 LLM 和开源文档 RAG 的论坛小助手已开放测试，在发帖时输入 [@论坛小助手] 即可召唤小助手，欢迎试用！

论坛小助手 · 2025 年8 月 13 日 11:37

根因分析场景: 日志归档问题
根因分析命令: obdiag rca run --scene=log_archive

日志采集场景: 日志归档问题
日志采集命令: obdiag gather scene run --scene=observer.log_archive

建议您使用上述 obdiag 命令来收集与日志归档相关的诊断信息。这将帮助我们了解当前环境下的配置和状态，从而找出导致备份操作失败的原因。请您执行命令后，提供采集到的日志文件压缩包。同时，请您回答以下几个问题以便我们更好地定位问题：

您当前的归档状态是什么样的？可以通过执行 show parameters like 'enable_archive' 和 show parameters like 'archive_dest' 来查看。
在尝试执行物理全备之前，是否执行过 alter system archive log current; 来触发日志归档？
您是否有查看过日志文件中关于日志归档和备份过程的任何错误或警告信息？
是否尝试过在其他时间点上执行同样的备份命令，结果如何？

附上敏捷诊断工具 obdiag 使用帮助链接

来轩 · 2025 年8 月 13 日 12:16

你查询的结果归档状态是STOP，这个肯定发起不了全备

chales675 · 2025 年8 月 13 日 12:26

是的老师如何能改变这个状态呢？

来轩 · 2025 年8 月 13 日 12:27

打开归档，alter system archive log;

chales675 · 2025 年8 月 13 日 12:31

老师是打开的状态，
obclient(root@bk_test)[(none)]> ALTER SYSTEM ARCHIVELOG;
ERROR 9091 (HY000): Already in ARCHIVELOG mode
obclient(root@bk_test)[(none)]>

aibase · 2025 年8 月 13 日 13:25

检查确认是否已正确配置归档路径（destination）。
检查确保 OBServer 节点可以访问该路径（如 NFS 挂载正常、对象存储权限正确等）。

具体配置方法参考对应版本的官网相关参数、权限以及配置要求。

没有问题再,手动启动归档：

ALTER SYSTEM ARCHIVE LOG TENANT = your_tenant_name;

启动后，等待状态变为 DOING ，然后再次尝试启动备份。

chales675 · 2025 年8 月 13 日 13:38

obclient(root@(none))[oceanbase]> ALTER SYSTEM ARCHIVELOG TENANT =bk_test;
Query OK, 0 rows affected (0.012 sec)

STATUS 仍然是STOP如下：

obclient(root@(none))[oceanbase]> SELECT * FROM oceanbase.CDB_OB_ARCHIVELOG\G;
*************************** 1. row ***************************
TENANT_ID: 1006
DEST_ID: 1005
ROUND_ID: 4
INCARNATION: 1
DEST_NO: 0
STATUS: STOP
START_SCN: 1750410603314797000
START_SCN_DISPLAY: 2025-06-20 17:10:03.314797
CHECKPOINT_SCN: 1751970028892849002
CHECKPOINT_SCN_DISPLAY: 2025-07-08 18:20:28.892849
COMPATIBLE: 1
BASE_PIECE_ID: 12
USED_PIECE_ID: 30
PIECE_SWITCH_INTERVAL: 86400000000
UNIT_SIZE: 1
COMPRESSION: none
INPUT_BYTES: 9894687298
INPUT_BYTES_DISPLAY: 9.22GB
OUTPUT_BYTES: 9894687298
OUTPUT_BYTES_DISPLAY: 9.22GB
COMPRESSION_RATIO: 1.00
DELETED_INPUT_BYTES: 0
DELETED_INPUT_BYTES_DISPLAY: 0.00MB
DELETED_OUTPUT_BYTES: 0
DELETED_OUTPUT_BYTES_DISPLAY: 0.00MB
COMMENT:
PATH: file:///backupnfs/myobdemo/1744871768/tenant_incarnation_1/1006/clog
1 row in set (0.086 sec)

ERROR: No query specified

obclient(root@(none))[oceanbase]>

旭辉 · 2025 年8 月 13 日 16:31

是单节点还是多节点？是否按照标准配置了NFS并挂载到所有节点了呢？

chales675 · 2025 年8 月 13 日 18:26

旭辉老师好，
是多节点的，之前是3个节点，扩容到了 5个节点，之前手动备份是正常的，然后使用ocp进行了定时备份有一段时间也是正常的一直没有关注，这几天发现定时任务有报错。这期间该租户进行了扩容，缩容，备份恢复等一系列操作。

下午也怀疑是nfs挂载有问题，检查发现新增的2个节点没有挂载nfs,但是我的这个租户只有了前3个节点，刚把后2个节点也加上了nfs挂载目录
1.重新将库改成非归档->归档
2.启用和禁用归档
是否可以手工触发归档？这样可以看看是否有相关报错。
备份依然同样的报错。归档的
STATUS 还是 STOP 如下结果：

obclient(root@bk_test)[(none)]> SELECT * FROM oceanbase.DBA_OB_ARCHIVELOG\G
*************************** 1. row ***************************
DEST_ID: 1005
ROUND_ID: 4
INCARNATION: 1
DEST_NO: 0
STATUS: STOP
START_SCN: 1750410603314797000
START_SCN_DISPLAY: 2025-06-20 17:10:03.314797
CHECKPOINT_SCN: 1751970028892849002
CHECKPOINT_SCN_DISPLAY: 2025-07-08 18:20:28.892849
COMPATIBLE: 1
BASE_PIECE_ID: 12
USED_PIECE_ID: 30
PIECE_SWITCH_INTERVAL: 86400000000
UNIT_SIZE: 1
COMPRESSION: none
INPUT_BYTES: 9894687298
INPUT_BYTES_DISPLAY: 9.22GB
OUTPUT_BYTES: 9894687298
OUTPUT_BYTES_DISPLAY: 9.22GB
COMPRESSION_RATIO: 1.00
DELETED_INPUT_BYTES: 0
DELETED_INPUT_BYTES_DISPLAY: 0.00MB
DELETED_OUTPUT_BYTES: 0
DELETED_OUTPUT_BYTES_DISPLAY: 0.00MB
COMMENT:
PATH: file:///backupnfs/myobdemo/1744871768/tenant_incarnation_1/1006/clog
1 row in set (0.007 sec)

obclient(root@bk_test)[(none)]>

上面的操作：
Welcome to the OceanBase. Commands end with ; or \g.
Your OceanBase connection id is 526073
Server version: OceanBase_CE 4.3.5.1 (r101000042025031818-b6d5706eb3d2c5f501c7fa646ddbf32f3dc87069) (Built Mar 18 2025 18:12:30)

Type ‘help;’ or ‘\h’ for help. Type ‘\c’ to clear the current input statement.

obclient(root@bk_test)[(none)]> select * from oceanbase.DBA_OB_BACKUP_PARAMETER;
±-----------------±---------------------------------------------------------------------+
| NAME | VALUE |
±-----------------±---------------------------------------------------------------------+
| data_backup_dest | file:///backupnfs/myobdemo/1744871768/tenant_incarnation_1/1006/data |
±-----------------±---------------------------------------------------------------------+
1 row in set (0.012 sec)

obclient(root@bk_test)[(none)]> ALTER SYSTEM NOARCHIVELOG;
Query OK, 0 rows affected (0.038 sec)

obclient(root@bk_test)[(none)]> ALTER SYSTEM ARCHIVELOG;
Query OK, 0 rows affected (0.023 sec)

obclient(root@bk_test)[(none)]> SELECT * FROM oceanbase.DBA_OB_ARCHIVELOG\G
*************************** 1. row ***************************
DEST_ID: 1005
ROUND_ID: 4
INCARNATION: 1
DEST_NO: 0
STATUS: STOP
START_SCN: 1750410603314797000
START_SCN_DISPLAY: 2025-06-20 17:10:03.314797
CHECKPOINT_SCN: 1751970028892849002
CHECKPOINT_SCN_DISPLAY: 2025-07-08 18:20:28.892849
COMPATIBLE: 1
BASE_PIECE_ID: 12
USED_PIECE_ID: 30
PIECE_SWITCH_INTERVAL: 86400000000
UNIT_SIZE: 1
COMPRESSION: none
INPUT_BYTES: 9894687298
INPUT_BYTES_DISPLAY: 9.22GB
OUTPUT_BYTES: 9894687298
OUTPUT_BYTES_DISPLAY: 9.22GB
COMPRESSION_RATIO: 1.00
DELETED_INPUT_BYTES: 0
DELETED_INPUT_BYTES_DISPLAY: 0.00MB
DELETED_OUTPUT_BYTES: 0
DELETED_OUTPUT_BYTES_DISPLAY: 0.00MB
COMMENT:
PATH: file:///backupnfs/myobdemo/1744871768/tenant_incarnation_1/1006/clog
1 row in set (0.034 sec)

obclient(root@bk_test)[(none)]> ALTER SYSTEM SET LOG_ARCHIVE_DEST_STATE=‘DEFER’;
Query OK, 0 rows affected (0.021 sec)

obclient(root@bk_test)[(none)]> ALTER SYSTEM SET LOG_ARCHIVE_DEST_STATE=‘ENABLE’;
Query OK, 0 rows affected (0.017 sec)

obclient(root@bk_test)[(none)]> SELECT * FROM oceanbase.DBA_OB_ARCHIVELOG\G
*************************** 1. row ***************************
DEST_ID: 1005
ROUND_ID: 4
INCARNATION: 1
DEST_NO: 0
STATUS: STOP
START_SCN: 1750410603314797000
START_SCN_DISPLAY: 2025-06-20 17:10:03.314797
CHECKPOINT_SCN: 1751970028892849002
CHECKPOINT_SCN_DISPLAY: 2025-07-08 18:20:28.892849
COMPATIBLE: 1
BASE_PIECE_ID: 12
USED_PIECE_ID: 30
PIECE_SWITCH_INTERVAL: 86400000000
UNIT_SIZE: 1
COMPRESSION: none
INPUT_BYTES: 9894687298
INPUT_BYTES_DISPLAY: 9.22GB
OUTPUT_BYTES: 9894687298
OUTPUT_BYTES_DISPLAY: 9.22GB
COMPRESSION_RATIO: 1.00
DELETED_INPUT_BYTES: 0
DELETED_INPUT_BYTES_DISPLAY: 0.00MB
DELETED_OUTPUT_BYTES: 0
DELETED_OUTPUT_BYTES_DISPLAY: 0.00MB
COMMENT:
PATH: file:///backupnfs/myobdemo/1744871768/tenant_incarnation_1/1006/clog
1 row in set (0.007 sec)

obclient(root@bk_test)[(none)]>

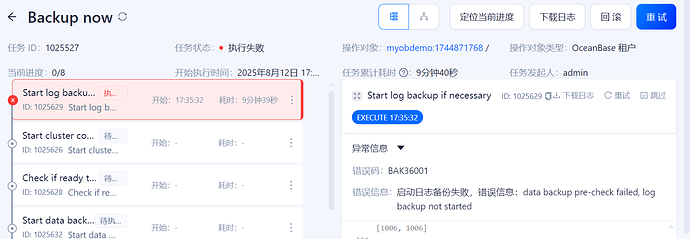

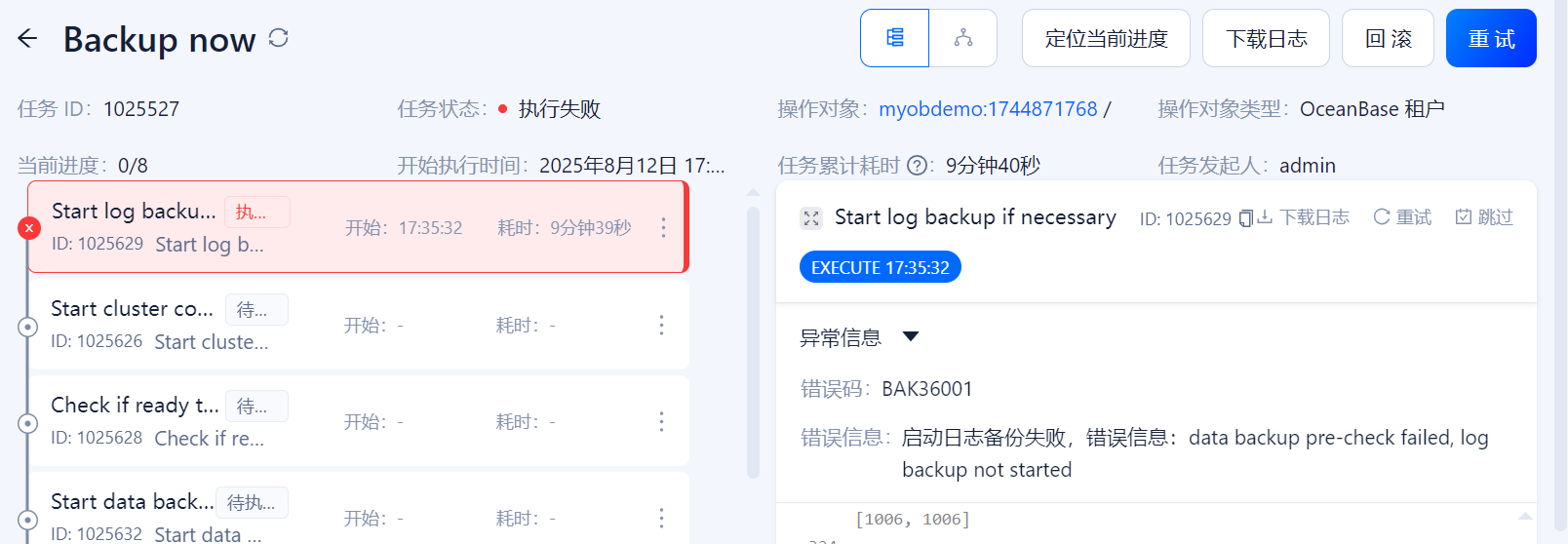

ocp的报错也是提示 “log backup not started.”

2025-08-12 17:45:11.370 ERROR 13042 — [manual-subtask-executor15,813db9467ecaa19c,f25b0453dfe1f00d] c.o.o.c.t.e.c.w.subtask.SubtaskExecutor : Failed to start log backup. Error message: data backup pre-check failed, log backup not started.

com.oceanbase.ocp.core.exception.UnexpectedException: [OCP UnexpectedException]: status=500 INTERNAL_SERVER_ERROR, errorCode=BACKUP_START_LOG_BACKUP_FAILED, args=data backup pre-check failed, log backup not started
at com.oceanbase.ocp.backup.internal.operation.PhysicalBackupTaskService.waitLogBackupStarted(PhysicalBackupTaskService.java:292)
at com.oceanbase.ocp.backup.internal.task.schedule.StartLogBackupTask.run(StartLogBackupTask.java:54)
at com.oceanbase.ocp.core.task.engine.runner.JavaSubtaskRunner.execute(JavaSubtaskRunner.java:64)
at com.oceanbase.ocp.core.task.engine.runner.JavaSubtaskRunner.doRun(JavaSubtaskRunner.java:32

旭辉 · 2025 年8 月 14 日 09:39

你看下这个目录/backupnfs/myobdemo/1744871768/tenant_incarnation_1/1006/clog 里面是否有
format.obbak 文件？

chales675 · 2025 年8 月 14 日 10:34

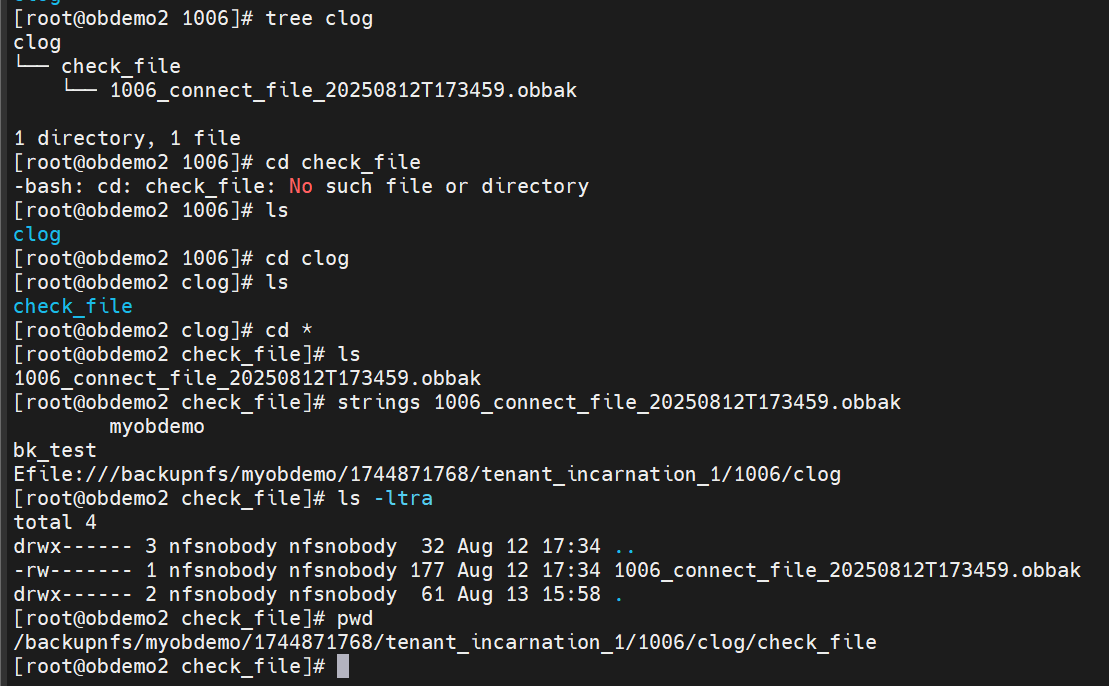

应该没有，不过有一个.obbak文件

旭辉 · 2025 年8 月 14 日 10:40

那是有问题的，要保证 format.obbak 不能被手动或其它方式删掉

1.Alter system noarchivelog;
2.将原备份及归档目录清掉
3.alter system set log_archive_dest= '';
4.alter system set data_backup_dest= '';
5.再在OCP上重新配置备份，可以使用原目录
6.发起备份测试下

chales675 · 2025 年8 月 14 日 14:16

按照旭辉老师的办法，问题已经解决感谢感谢

obclient(root@bk_test)[(none)]> Alter system noarchivelog;
Query OK, 0 rows affected (0.044 sec)

obclient(root@bk_test)[(none)]> alter system set log_archive_dest= ‘’;
Query OK, 0 rows affected (0.047 sec)

obclient(root@bk_test)[(none)]> alter system set data_backup_dest= ‘’;
Query OK, 0 rows affected (0.036 sec)

ocp 删除备份策略，poc 环境也清空了相关目录里的文件。使用ocp重建备份策略

obclient(root@bk_test)[(none)]> SELECT * FROM oceanbase.DBA_OB_ARCHIVELOG\G
*************************** 1. row ***************************
DEST_ID: 1007
ROUND_ID: 5
INCARNATION: 1
DEST_NO: 0
STATUS: DOING
START_SCN: 1755151411126145000
START_SCN_DISPLAY: 2025-08-14 14:03:31.126145
CHECKPOINT_SCN: 1755151411126145002
CHECKPOINT_SCN_DISPLAY: 2025-08-14 14:03:31.126145
COMPATIBLE: 1
BASE_PIECE_ID: 31
USED_PIECE_ID: 31
PIECE_SWITCH_INTERVAL: 86400000000
UNIT_SIZE: 1
COMPRESSION: none
INPUT_BYTES: 20928704
INPUT_BYTES_DISPLAY: 19.96MB
OUTPUT_BYTES: 20928704
OUTPUT_BYTES_DISPLAY: 19.96MB
COMPRESSION_RATIO: 1.00
DELETED_INPUT_BYTES: 0
DELETED_INPUT_BYTES_DISPLAY: 0.00MB
DELETED_OUTPUT_BYTES: 0
DELETED_OUTPUT_BYTES_DISPLAY: 0.00MB
COMMENT:
PATH: file:///backupnfs/myobdemo/1744871768/tenant_incarnation_1/1006/clog
1 row in set (0.007 sec)

[admin@obdemo2 1006]$ tree clog
clog
├── check_file
│ └── 1006_connect_file_20250814T140328.obbak
├── format.obbak
├── piece_d1007r5p31
│ ├── checkpoint
│ │ ├── checkpoint_info.0.obarc
│ │ └── checkpoint_info.1755151411126145002.obarc
│ ├── logstream_1
│ │ ├── log
│ │ │ └── 137.obarc
│ │ └── schema_meta
│ │ └── 1755151411983629000.obarc
│ ├── logstream_1009
│ │ └── log
│ │ └── 274.obarc
│ └── tenant_archive_piece_infos.obarc
├── pieces
│ └── piece_d1007r5p31_start_20250814T140331.obarc
└── rounds
└── round_d1007r5_start.obarc
