ocp修改zone属性

OceanBase 技术问题
#1
mysql> select * from oceanbase.dba_ob_zones;
+-------+----------------------------+----------------------------+--------+------+----------+-----------+
| ZONE  | CREATE_TIME                | MODIFY_TIME                | STATUS | IDC  | REGION   | TYPE      |
+-------+----------------------------+----------------------------+--------+------+----------+-----------+
| zone1 | 2025-07-11 16:45:32.610645 | 2025-07-19 22:32:42.072684 | ACTIVE | idc1 | HANGZHOU | ReadWrite |
| zone2 | 2025-07-11 16:45:32.611700 | 2025-07-22 09:32:52.408101 | ACTIVE | idc1 | HANGZHOU | ReadWrite |
| zone3 | 2025-07-11 16:45:32.611700 | 2025-07-22 09:32:57.479488 | ACTIVE | idc1 | HANGZHOU | ReadWrite |
+-------+----------------------------+----------------------------+--------+------+----------+-----------+
3 rows in set (0.03 sec)

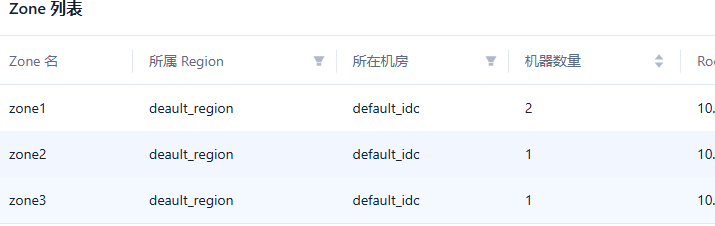

但是ocp中看到的zone信息如下：

image722×246 6.14 KB

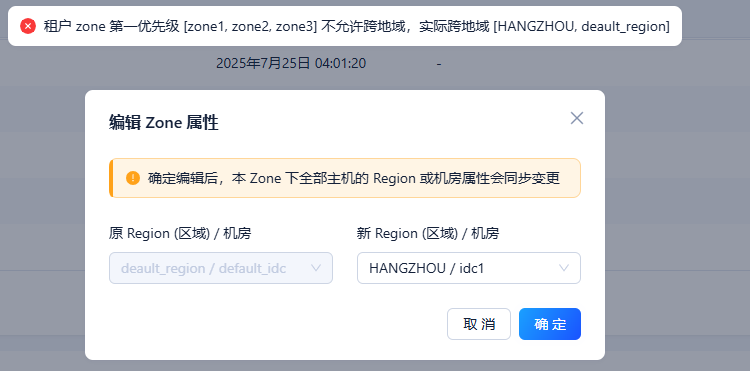

点击右边的编辑，如下：

如何修改呢？

背景：
我向zone1中再添加一台observer时，初始化的时候报错，如下：

2025-07-24 17:44:46.390  WARN 39220 --- [manual-subtask-executor15,4e9155f8e9a756c3,3e6cf61a0a868594] c.o.ocp.common.lang.pattern.Retry        : failed to execute target runnable, errMsg:regionName not found, zoneName=zone1, regionName=HANGZHOU

2025-07-24 17:44:46.392 ERROR 39220 --- [manual-subtask-executor15,4e9155f8e9a756c3,3e6cf61a0a868594] c.o.o.c.t.e.c.w.subtask.SubtaskExecutor  : regionName not found, zoneName=zone1, regionName=HANGZHOU

java.lang.IllegalArgumentException: regionName not found, zoneName=zone1, regionName=HANGZHOU
	at org.apache.commons.lang3.Validate.isTrue(Validate.java:158)
	at com.oceanbase.ocp.obops.internal.cluster.ClusterSyncServiceImpl.validateIdcAndRegionForZone(ClusterSyncServiceImpl.java:1016)
	at com.oceanbase.ocp.obops.internal.cluster.ClusterSyncServiceImpl.lambda$validateZones$17(ClusterSyncServiceImpl.java:1007)
	at java.util.ArrayList.forEach(ArrayList.java:1259)
	at com.oceanbase.ocp.obops.internal.cluster.ClusterSyncServiceImpl.validateZones(ClusterSyncServiceImpl.java:1007
2 个赞
#3

1 修改集群的zone信息
select * from dba_ob_zones;

ALTER SYSTEM MODIFY ZONE zone1 SET REGION = ‘HANGZHOU’, IDC = ‘idc1’;

select * from dba_ob_zones;

2 登录ocp元数据库,修改相关元数据

select * from compute_idc;
select * from compute_region;
select id,name,inner_ip_address,idc_id from compute_host;

修改ocp中的idc及region信息
select id,name,inner_ip_address,idc_id from compute_host where name like ‘主机名%’;

update compute_host set idc_id=(select id from compute_idc where name=‘idc1’) where name like ‘主机名%’;

1 个赞
#4

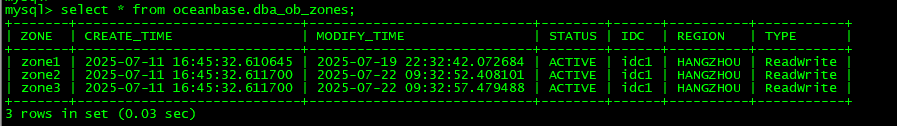

image897×126 3.56 KB

很奇怪，为什么我这里显示是已经修改完的，但是ocp的metadb存储的元数据没有修改到!

不应该啊

1 个赞
#5

OCP是哪个版本？这个OB集群是哪个版本？

show variables like '%version_comment%'
1 个赞
#6

ocp：4.3.5
ob：4.2.1.8

mysql> show variables like '%version_comment%';
+-----------------+------------------------------------------------------------------------------------------------------------------+
| Variable_name   | Value                                                                                                            |
+-----------------+------------------------------------------------------------------------------------------------------------------+
| version_comment | OceanBase_CE 4.2.1.8 (r108000022024072217-3149c25ca2dadbb7707686ad02a1367b1b43e0b5) (Built Jul 23 2024 02:01:58) |
+-----------------+------------------------------------------------------------------------------------------------------------------+
1 row in set (0.00 sec)
1 个赞
#7

这个zone1 zone2 zone3 是OCP的metadb集群吗？你这里是要往这些zone里面添加机器？

1 个赞
#9

metadb的集群zone1 zone2 zone3
如下：

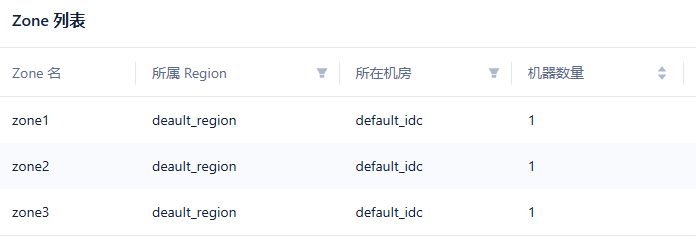

image696×239 5.77 KB

metadb 部署后就没有动过

业务集群：
修改过region和idc属性，如下：

image897×126 3.56 KB

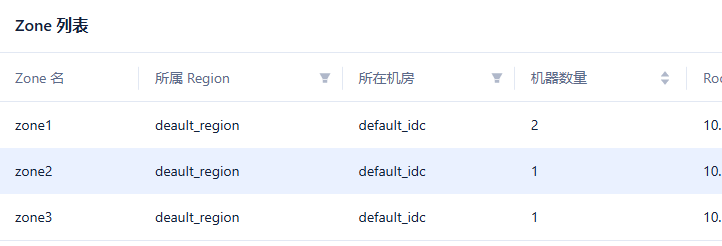

但是ocp看到的如下：

image715×226 6.08 KB

在向业务集群添加observer的时候报错，zone1显示有2个observer，但是其中一个状态有问题。

#10

这两个是同一个业务集群？

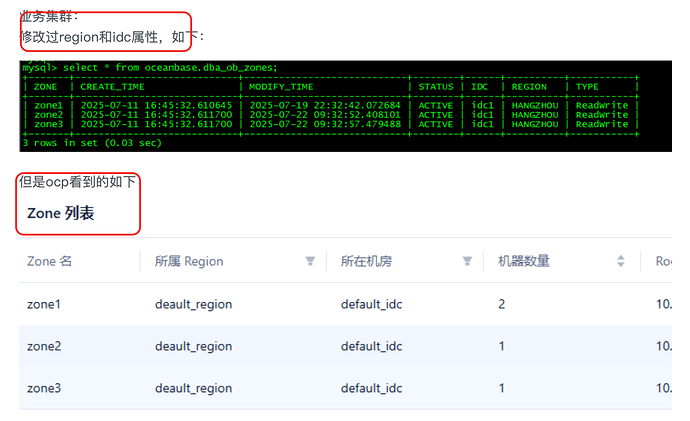

image1458×890 153 KB

#11

是的

#12

region和idc 都不对，是接管过来的？接管正常吗？业务集群是什么版本？

#13

都是4.2.1.8
ocp和metadb是用obd web部署的

业务集群的observer和odp都是用ocp管理的

#14

业务集群是OCP直接部署的？部署后就idc和region 就喝OCP上展示的不一致吗？

#15

是的，手动在命令窗口 alter system修改后，展示不一致

#16

修改之前一致吗，是黑屏在业务集群修改了 idc=idc1，region=HANGZHOU 吗？

#17

没有黑屏修改之前，估计是一致的，都是默认的

mysql> select * from oceanbase.dba_ob_zones;
+-------+----------------------------+----------------------------+--------+------+----------+-----------+
| ZONE  | CREATE_TIME                | MODIFY_TIME                | STATUS | IDC  | REGION   | TYPE      |
+-------+----------------------------+----------------------------+--------+------+----------+-----------+
| zone1 | 2025-07-11 16:45:32.610645 | 2025-07-19 22:32:42.072684 | ACTIVE | idc1 | HANGZHOU | ReadWrite |
| zone2 | 2025-07-11 16:45:32.611700 | 2025-07-19 22:32:51.766659 | ACTIVE | idc2 | HANGZHOU | ReadWrite |
| zone3 | 2025-07-11 16:45:32.611700 | 2025-07-21 18:34:53.372976 | ACTIVE | idc3 | HANGZHOU | ReadWrite |
+-------+----------------------------+----------------------------+--------+------+----------+-----------+
3 rows in set (0.00 sec)

mysql> alter system modify zone "zone2" idc=idc1;
Query OK, 0 rows affected (0.01 sec)

mysql> alter system modify zone "zone3" idc=idc1;
Query OK, 0 rows affected (0.00 sec)

mysql> select * from oceanbase.dba_ob_zones;
+-------+----------------------------+----------------------------+--------+------+----------+-----------+
| ZONE  | CREATE_TIME                | MODIFY_TIME                | STATUS | IDC  | REGION   | TYPE      |
+-------+----------------------------+----------------------------+--------+------+----------+-----------+
| zone1 | 2025-07-11 16:45:32.610645 | 2025-07-19 22:32:42.072684 | ACTIVE | idc1 | HANGZHOU | ReadWrite |
| zone2 | 2025-07-11 16:45:32.611700 | 2025-07-22 09:32:52.408101 | ACTIVE | idc1 | HANGZHOU | ReadWrite |
| zone3 | 2025-07-11 16:45:32.611700 | 2025-07-22 09:32:57.479488 | ACTIVE | idc1 | HANGZHOU | ReadWrite |
+-------+----------------------------+----------------------------+--------+------+----------+-----------+
3 rows in set (0.00 sec)

都是以这种方式修改的

#18

黑屏改确实会造成不一致，这个查询下

– 查询 OCP metadb 维护的 IDC 和 Region 信息

SELECT r.`name` AS region, i.`name` AS idc
 FROM compute_region r JOIN compute_idc i
 ON r.id=i.region_id;
#19
mysql> use meta_database;
Database changed
mysql> SELECT r.`name` AS region, i.`name` AS idc
    ->  FROM compute_region r JOIN compute_idc i
    ->  ON r.id=i.region_id;
+---------------+-------------+
| region        | idc         |
+---------------+-------------+
| deault_region | default_idc |
+---------------+-------------+
1 row in set (0.00 sec)


mysql> select * from compute_region;
+----+-----------------+---------------------+---------------------+-------------+
| id | name            | create_time         | update_time         | description |
+----+-----------------+---------------------+---------------------+-------------+
|  1 | OCP_META_REGION | 2025-07-11 12:17:44 | 2025-07-11 12:17:44 | NULL        |
|  2 | deault_region   | 2025-07-11 12:23:18 | 2025-07-11 12:23:18 | NULL        |
+----+-----------------+---------------------+---------------------+-------------+
2 rows in set (0.00 sec)

mysql> select * from compute_idc;
+----+-------------+-------------+---------------------+---------------------+-----------+
| id | name        | description | create_time         | update_time         | region_id |
+----+-------------+-------------+---------------------+---------------------+-----------+
|  1 | default_idc | NULL        | 2025-07-11 12:23:18 | 2025-07-11 12:23:18 |         2 |
+----+-------------+-------------+---------------------+---------------------+-----------+
1 row in set (0.00 sec)
升级OCP失败，当前OCP-Server无法启动
#20

mysql> set autocommit=0;
Query OK, 0 rows affected (0.00 sec)

mysql> insert into compute_region(id,name,create_time,update_time,description) values(3,'HANGZHOU',now(),now(),NULL);
Query OK, 1 row affected (0.01 sec)

mysql> select * from compute_region;
+----+-----------------+---------------------+---------------------+-------------+
| id | name            | create_time         | update_time         | description |
+----+-----------------+---------------------+---------------------+-------------+
|  1 | OCP_META_REGION | 2025-07-11 12:17:44 | 2025-07-11 12:17:44 | NULL        |
|  2 | deault_region   | 2025-07-11 12:23:18 | 2025-07-11 12:23:18 | NULL        |
|  3 | HANGZHOU        | 2025-07-25 11:50:20 | 2025-07-25 11:50:20 | NULL        |
+----+-----------------+---------------------+---------------------+-------------+
3 rows in set (0.00 sec)

mysql> commit;
Query OK, 0 rows affected (0.00 sec)

mysql> select * from compute_idc;
+----+-------------+-------------+---------------------+---------------------+-----------+
| id | name        | description | create_time         | update_time         | region_id |
+----+-------------+-------------+---------------------+---------------------+-----------+
|  1 | default_idc | NULL        | 2025-07-11 12:23:18 | 2025-07-11 12:23:18 |         2 |
+----+-------------+-------------+---------------------+---------------------+-----------+
1 row in set (0.01 sec)

mysql> insert into compute_idc(id,name,create_time,update_time,region_id) values(2,'idc1',now(),now(),3);
Query OK, 1 row affected (0.00 sec)

mysql> select * from compute_idc;
+----+-------------+-------------+---------------------+---------------------+-----------+
| id | name        | description | create_time         | update_time         | region_id |
+----+-------------+-------------+---------------------+---------------------+-----------+
|  1 | default_idc | NULL        | 2025-07-11 12:23:18 | 2025-07-11 12:23:18 |         2 |
|  2 | idc1        | NULL        | 2025-07-25 11:51:30 | 2025-07-25 11:51:30 |         3 |
+----+-------------+-------------+---------------------+---------------------+-----------+
2 rows in set (0.00 sec)

mysql> commit;
Query OK, 0 rows affected (0.00 sec)

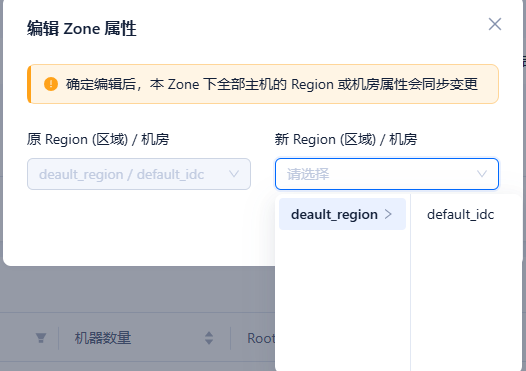

image750×371 15.9 KB

看来只能update compute_host表了

#21
新增 Region
insert into compute_region (`name`, `description`) values ('HANGZHOU', 'HANGZHOU region');
新增 IDC
insert into compute_idc (`name`, `description`, `region_id`) select 'idc1', 'idc1 idc', id from compute_region where name='HANGZHOU';
#22
