ob4.6.0.0版本备份出现-9120(cannot find object on object storage)

OceanBase 技术问题
,
#1

ob版本号：4.6.0.0 CE
obproxy版本号:4.3.6.1
遇到问题:
使用ALTER SYSTEM BACKUP TENANT='obmysql’进行备份时，报 -9120(cannot find object on object storage)。
已尝试措施:
1、使用S3://和OSS://，均报此错误。
2、file://尝试过，但改不成这个格式，报MySQL [(none)]> ALTER SYSTEM SET data_backup_dest=‘file:///data/backup_test_20260624’ TENANT=‘obmysql’;
ERROR 9120 (HY000): cannot find object on object storage
3、ob4.3.5.5可以正常备份

已经查询了官网、社区、大模型，未解决。故发帖求助，有偿

JOB_HISTORY如下：
*************************** 28. row ***************************
TENANT_ID: 1002
JOB_ID: 191
INCARNATION: 1
BACKUP_SET_ID: 24
INITIATOR_TENANT_ID: 1
INITIATOR_JOB_ID: 2
EXECUTOR_TENANT_ID: 1002
PLUS_ARCHIVELOG: OFF
BACKUP_TYPE: FULL
JOB_LEVEL: USER_TENANT
ENCRYPTION_MODE: NONE
PASSWD:
START_TIMESTAMP: 2026-06-24 15:11:18.516052
END_TIMESTAMP: 2026-06-24 15:11:40.662599
STATUS: FAILED
RESULT: -9120
COMMENT: (ROOTSERVICE)addr: 10.20.203.123:2882, result: -9120(cannot find object on object storage), trace_id: YB420A14CB7B-0006546F0AAD4933-0-0
DESCRIPTION:
PATH: s3://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_01?host=oss-cn-uat.midea.com
*************************** 29. row ***************************
TENANT_ID: 1002
JOB_ID: 192
INCARNATION: 1
BACKUP_SET_ID: 25
INITIATOR_TENANT_ID: 1
INITIATOR_JOB_ID: 3
EXECUTOR_TENANT_ID: 1002
PLUS_ARCHIVELOG: OFF
BACKUP_TYPE: FULL
JOB_LEVEL: USER_TENANT
ENCRYPTION_MODE: NONE
PASSWD:
START_TIMESTAMP: 2026-06-24 15:20:44.751937
END_TIMESTAMP: 2026-06-24 15:21:10.705502
STATUS: FAILED
RESULT: -9120
COMMENT: (ROOTSERVICE)addr: 10.20.203.123:2882, result: -9120(cannot find object on object storage), trace_id: YB420A14CB7B-0006546F0AAD4940-0-0
DESCRIPTION:
PATH: oss://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_02?host=oss-cn-uat.midea.com

日志是在我回复里。因为新用户，发贴有限制

5 个赞
#3

此帖子已被社区举报，现已被临时隐藏。

1 个赞
#4

此帖子已被社区举报，现已被临时隐藏。

#5

observer.log.20260624151149783:[2026-06-24 15:11:40.661694] INFO get_file_stat (ob_storage.cpp:762) [64650][IO_SYNC_CH0][T0][YB420A14CB7B-0006546F0AAD4933-0-0] [lt=29] cannot get file stat for not exist file(ret=-9120, uri=s3://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_01/backup_set_24_full/infos/meta_info/root_key.obbak)
observer.log.20260624151149783:[2026-06-24 15:11:40.661728] WDIAG inner_stat_ (ob_object_device.cpp:944) [64650][IO_SYNC_CH0][T0][YB420A14CB7B-0006546F0AAD4933-0-0] [lt=31][errcode=-9120] fail to get file stat!(ret=-9120, uri=s3://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_01/backup_set_24_full/infos/meta_info/root_key.obbak, is_adaptive=false)
observer.log.20260624151149783:[2026-06-24 15:11:40.661749] WDIAG [COMMON] do_sync_io (ob_io_struct.cpp:2669) [64650][IO_SYNC_CH0][T0][YB420A14CB7B-0006546F0AAD4933-0-0] [lt=20][errcode=-9120] failed to get file stat(ret=-9120, req={this:0x7fac9e6142b0, io_result_:0x7fac9e614150, is_inited_:true, tenant_id_:1001, control_block_:null, ref_cnt_:2, raw_buf_:0x7fac17f26150, fd_:{first_id:-1, second_id:-1, third_id:-1, fd_id:4035225266123964416, slot_version:604, is_object_storage_async_io:false, device_handle:0x7fab3719e240}, is_limit_net_bandwidth_req():true, align_size_:112, align_offset_:0, trace_id_:YB420A14CB7B-0006546F0AAD4933-0-0, retry_count_:0, tenant_io_mgr_:{ptr:0x7faca05dc030}, storage_accesser:{ptr:0x7fabb45c1e80}, io_result_:{this:0x7fac9e614150, is_inited_:true, is_finished_:false, is_canceled_:false, has_estimated_:false, complete_size_:0, offset_:0, size_:112, timeout_us_:20000000, result_ref_cnt_:2, out_ref_cnt_:1, flag_:{mode:“READ”, read_mode:3, group_id_:0, func_type_:0, wait_event_id_:18, is_sync_:true, is_unlimited_:false, is_detect_:false, is_write_through_:false, is_sealed_:true, is_time_detect_:false, need_close_dev_and_fd_:false, is_preread_:false, is_buffered_read_:true, is_upload_part_:false, reserved_:0}, ret_code_:{io_ret_:0, fs_errno_:0}, tenant_id_:1001, tenant_io_mgr_:{ptr:0x7faca05dc030}, user_data_buf_:0x7fac9a9d9360, buf_:null, io_callback_:null, time_log:{begin_ts:1782285100654124, enqueue_used:3, dequeue_used:23, submit_used:36, return_used:-1, callback_enqueue_used:-1, callback_dequeue_used:-1, callback_finish_used:-1, end_used:-1}}, part_id:-1, uri_cstr:s3://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_01/backup_set_24_full/infos/meta_info/root_key.obbak})
observer.log.20260624151149783:[2026-06-24 15:11:40.661893] WDIAG [COMMON] handle (ob_io_struct.cpp:2540) [64650][IO_SYNC_CH0][T0][YB420A14CB7B-0006546F0AAD4933-0-0] [lt=132][errcode=-9120] do sync io failed(ret=-9120, req={this:0x7fac9e6142b0, io_result_:0x7fac9e614150, is_inited_:true, tenant_id_:1001, control_block_:null, ref_cnt_:2, raw_buf_:0x7fac17f26150, fd_:{first_id:-1, second_id:-1, third_id:-1, fd_id:4035225266123964416, slot_version:604, is_object_storage_async_io:false, device_handle:0x7fab3719e240}, is_limit_net_bandwidth_req():true, align_size_:112, align_offset_:0, trace_id_:YB420A14CB7B-0006546F0AAD4933-0-0, retry_count_:0, tenant_io_mgr_:{ptr:0x7faca05dc030}, storage_accesser:{ptr:0x7fabb45c1e80}, io_result_:{this:0x7fac9e614150, is_inited_:true, is_finished_:true, is_canceled_:false, has_estimated_:false, complete_size_:0, offset_:0, size_:112, timeout_us_:20000000, result_ref_cnt_:2, out_ref_cnt_:1, flag_:{mode:“READ”, read_mode:3, group_id_:0, func_type_:0, wait_event_id_:18, is_sync_:true, is_unlimited_:false, is_detect_:false, is_write_through_:false, is_sealed_:true, is_time_detect_:false, need_close_dev_and_fd_:false, is_preread_:false, is_buffered_read_:true, is_upload_part_:false, reserved_:0}, ret_code_:{io_ret_:-9120, fs_errno_:0}, tenant_id_:1001, tenant_io_mgr_:{ptr:0x7faca05dc030}, user_data_buf_:0x7fac9a9d9360, buf_:null, io_callback_:null, time_log:{begin_ts:1782285100654124, enqueue_used:3, dequeue_used:23, submit_used:36, return_used:-1, callback_enqueue_used:-1, callback_dequeue_used:-1, callback_finish_used:-1, end_used:7697}}, part_id:-1, uri_cstr:s3://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_01/backup_set_24_full/infos/meta_info/root_key.obbak})

#6

你这个是做测试么？同样的命令 ob4.3.5.5可以正常备份 4.6.0备份报错是么？社区看着没有460呀

1 个赞
#7

是的

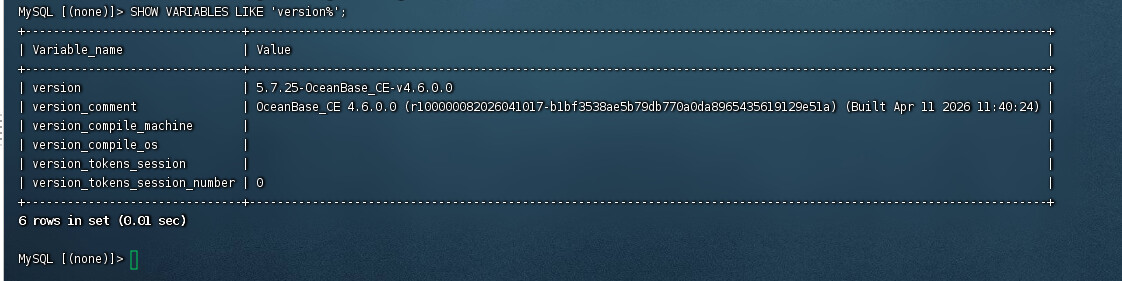

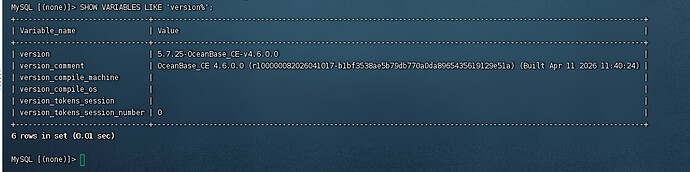

image1122×281 81.3 KB

1 个赞
#8

另一个帖子一样的问题，因为这个帖子之前回复太多被隐藏了，所以新开了一个。

1 个赞
#9

看报错的信息是备份的文件不存在了报错了
– sys 租户
SELECT JOB_ID, BACKUP_SET_ID, STATUS, RESULT, COMMENT, PATH, START_TIMESTAMP, END_TIMESTAMP
FROM oceanbase.CDB_OB_BACKUP_JOB_HISTORY
WHERE TENANT_ID = 1001
ORDER BY JOB_ID DESC LIMIT 5;

SELECT JOB_ID, BACKUP_SET_ID, STATUS, TASK_ID, TRACE_ID, COMMENT
FROM oceanbase.CDB_OB_BACKUP_TASKS
WHERE TENANT_ID = 1001;

报错时间的rootservice.log日志 能发一下么？

1 个赞
#10

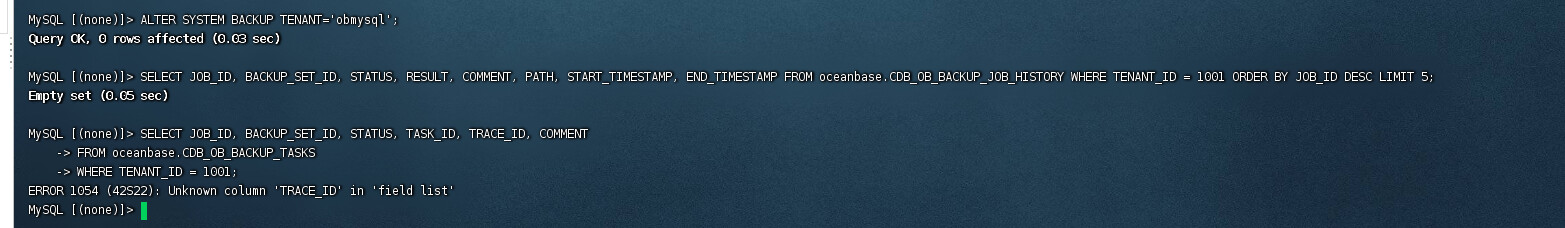

重新触发了下备份:
image1565×228 94.8 KB

job历史:
*************************** 32. row ***************************
TENANT_ID: 1002
JOB_ID: 198
INCARNATION: 1
BACKUP_SET_ID: 27
INITIATOR_TENANT_ID: 1
INITIATOR_JOB_ID: 5
EXECUTOR_TENANT_ID: 1002
PLUS_ARCHIVELOG: OFF
BACKUP_TYPE: FULL
JOB_LEVEL: USER_TENANT
ENCRYPTION_MODE: NONE
PASSWD:
START_TIMESTAMP: 2026-06-24 19:15:23.023162
END_TIMESTAMP: 2026-06-24 19:15:42.683306
STATUS: FAILED
RESULT: -9120
COMMENT: (ROOTSERVICE)addr: 10.20.203.123:2882, result: -9120(cannot find object on object storage), trace_id: YB420A14CB7B-0006546F0AAD4999-0-0
DESCRIPTION:
PATH: oss://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_03?host=oss-cn-uat.midea.com
32 rows in set (0.03 sec)

根据trace_id: YB420A14CB7B-0006546F0AAD4999-0-0搜索，rootservice.log部分日志:
[2026-06-24 19:15:42.458226] INFO [STORAGE] read_next_range_tablet_metas_ (ob_backup_extern_info_mgr.cpp:781) [858][T1001_BackupDat][T1001][YB420A14CB7B-0006546F0AAD4999-0-0] [lt=0] read tablet meta(path={cur_pos:197, path:“oss://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_03/backup_set_27_full/logstream_1/meta_info_turn_1_retry_0/tablet_info.1.obbak”}, tablet_meta={magic_number:-20230111, version:3, is_empty_shell:false, ls_id:{id:1}, tablet_id:{id:50191}, data_tablet_id:{id:191}, ref_tablet_id:{id:0}, create_scn:{val:1781685775214897001, v:0}, start_scn:{val:1, v:0}, clog_checkpoint_scn:{val:1, v:0}, ddl_checkpoint_scn:{val:1, v:0}, ddl_snapshot_version:0, ddl_start_scn:{val:0, v:0}, snapshot_version:1782237750898771000, multi_version_start:1782237603543575000, compat_mode:0, ha_status:{restore_status:0, data_status:0, expected_status:0, reserved:0}, report_status:{merge_snapshot_version:1782237601143330000, cur_report_version:1782237601143330000, data_checksum:0, row_count:0, found_cg_checksum_error:false}, storage_schema:{this:0x7fac9a9d61e0, storage_schema_version:7, version:0, column_info_simplified:0, merge_engine_type:0, has_ttl_definition:0, was_compaction_ttl:0, compat_mode:0, table_type:13, index_type:0, row_store_type:1, schema_version:1050376, is_cs_replica_compat:0, is_column_table_schema:0, enable_macro_block_bloom_filter:0, column_cnt:6, store_column_cnt:6, tablet_size:134217728, pctfree:10, block_size:16384, progressive_merge_round:1, master_key_id:18446744073709551615, compressor_type:1, encryption:"", encrypt_key:"", is_use_bloomfilter:0, rowkey_cnt:2, rowkey_array:[{column_idx:16, meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, order:0}, {column_idx:17, meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, order:0}], column_cnt:6, column_array:[{meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, is_column_stored_in_sstable:1, is_rowkey_column:1, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, is_column_stored_in_sstable:1, is_rowkey_column:1, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“INT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“INT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“BIGINT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}], skip_index_cnt:0, skip_idx_attr_array:[], column_group_cnt:1, column_group_array:[{version:1, type:1, compressor_type:1, row_store_type:1, block_size:16384, schema_column_cnt:6, rowkey_column_cnt:4, schema_rowkey_column_cnt:2, column_cnt:8, column_idxs:null}], has_all_column_group:true, micro_block_format_version:1, minor_row_store_type:0, skip_index_level:0}, medium_info_list:{is_inited:true, extra_info:{info:1, compat:1, last_compaction_type:0, wait_check_flag:0, last_medium_scn:0}, list_size:0, medium_info_list:[]}, extra_medium_info:{info:4353, compat:1, last_compaction_type:1, wait_check_flag:1, last_medium_scn:1782237601143330000}, last_persisted_committed_tablet_status:{tablet_status:{val:1, str:“NORMAL”}, transfer_scn:{val:18446744073709551615, v:3}, transfer_ls_id:{id:-1}, data_type:1, create_commit_scn:{val:1781685775396489000, v:0}, create_commit_version:1781685775396489000, delete_commit_scn:{val:18446744073709551615, v:3}, delete_commit_version:-1, start_transfer_commit_version:-1, start_split_commit_version:-1, start_transfer_commit_scn:{val:18446744073709551615, v:3}}, table_store_flag:{with_major_sstable:1, is_user_data_table:0}, max_sync_storage_schema_version:0, ddl_execution_id:-1, ddl_data_format_version:0, max_serialized_medium_scn:0, ddl_commit_scn:{val:0, v:0}, mds_checkpoint_scn:{val:1782285645685897000, v:0}, mds_data:{is_inited:false, tablet_status_uncommitted_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x0, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, tablet_status_committed_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x0, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, aux_tablet_info_uncommitted_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x40e642bc, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, aux_tablet_info_committed_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x7fac, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, medium_info_list:{extra_medium_info:{info:1, compat:1, last_compaction_type:0, wait_check_flag:0, last_medium_scn:0}, medium_info_list:{is_inited:false, allocator:null, medium_info:[]}}, auto_inc_seq:{version:1, intervals_count:0, intervals:NULL}}, transfer_info:{ls_id:{id:0}, transfer_start_scn:{val:0, v:0}, transfer_seq:0, has_transfer_table:false, unused_is_transfer_out_deleted:false, src_reorganization_scn:{val:0, v:0}, private_transfer_epoch:-1}, create_schema_version:0, micro_index_clustered:false, major_ckm_info:{is_empty:true}, ddl_replay_status:14, is_storage_schema_cs_replica:false, split_info:{split_info:0, split_src_tablet_id:{id:0}, split_start_scn:{val:18446744073709551615, v:3}}, has_merged_with_mds_info:false, min_ss_tablet_version:{val:0, v:0}, inc_major_snapshot:0, inc_major_replay_scn:{val:0, v:0}})
[2026-06-24 19:15:42.458791] INFO [STORAGE] read_next_range_tablet_metas_ (ob_backup_extern_info_mgr.cpp:781) [858][T1001_BackupDat][T1001][YB420A14CB7B-0006546F0AAD4999-0-0] [lt=0] read tablet meta(path={cur_pos:197, path:“oss://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_03/backup_set_27_full/logstream_1/meta_info_turn_1_retry_0/tablet_info.1.obbak”}, tablet_meta={magic_number:-20230111, version:3, is_empty_shell:false, ls_id:{id:1}, tablet_id:{id:50420}, data_tablet_id:{id:420}, ref_tablet_id:{id:0}, create_scn:{val:1781685775214897001, v:0}, start_scn:{val:1, v:0}, clog_checkpoint_scn:{val:1, v:0}, ddl_checkpoint_scn:{val:1, v:0}, ddl_snapshot_version:0, ddl_start_scn:{val:0, v:0}, snapshot_version:1782237748874039001, multi_version_start:1782237603543575000, compat_mode:0, ha_status:{restore_status:0, data_status:0, expected_status:0, reserved:0}, report_status:{merge_snapshot_version:1782237601143330000, cur_report_version:1782237601143330000, data_checksum:0, row_count:0, found_cg_checksum_error:false}, storage_schema:{this:0x7fac9a9d61e0, storage_schema_version:7, version:0, column_info_simplified:0, merge_engine_type:0, has_ttl_definition:0, was_compaction_ttl:0, compat_mode:0, table_type:13, index_type:0, row_store_type:1, schema_version:1054568, is_cs_replica_compat:0, is_column_table_schema:0, enable_macro_block_bloom_filter:0, column_cnt:6, store_column_cnt:6, tablet_size:134217728, pctfree:10, block_size:16384, progressive_merge_round:1, master_key_id:18446744073709551615, compressor_type:1, encryption:"", encrypt_key:"", is_use_bloomfilter:0, rowkey_cnt:2, rowkey_array:[{column_idx:16, meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, order:0}, {column_idx:17, meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, order:0}], column_cnt:6, column_array:[{meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, is_column_stored_in_sstable:1, is_rowkey_column:1, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, is_column_stored_in_sstable:1, is_rowkey_column:1, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“INT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“INT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“BIGINT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}], skip_index_cnt:0, skip_idx_attr_array:[], column_group_cnt:1, column_group_array:[{version:1, type:1, compressor_type:1, row_store_type:1, block_size:16384, schema_column_cnt:6, rowkey_column_cnt:4, schema_rowkey_column_cnt:2, column_cnt:8, column_idxs:null}], has_all_column_group:true, micro_block_format_version:1, minor_row_store_type:0, skip_index_level:0}, medium_info_list:{is_inited:true, extra_info:{info:1, compat:1, last_compaction_type:0, wait_check_flag:0, last_medium_scn:0}, list_size:0, medium_info_list:[]}, extra_medium_info:{info:4353, compat:1, last_compaction_type:1, wait_check_flag:1, last_medium_scn:1782237601143330000}, last_persisted_committed_tablet_status:{tablet_status:{val:1, str:“NORMAL”}, transfer_scn:{val:18446744073709551615, v:3}, transfer_ls_id:{id:-1}, data_type:1, create_commit_scn:{val:1781685775396489000, v:0}, create_commit_version:1781685775396489000, delete_commit_scn:{val:18446744073709551615, v:3}, delete_commit_version:-1, start_transfer_commit_version:-1, start_split_commit_version:-1, start_transfer_commit_scn:{val:18446744073709551615, v:3}}, table_store_flag:{with_major_sstable:1, is_user_data_table:0}, max_sync_storage_schema_version:0, ddl_execution_id:-1, ddl_data_format_version:0, max_serialized_medium_scn:0, ddl_commit_scn:{val:0, v:0}, mds_checkpoint_scn:{val:1782285645685897000, v:0}, mds_data:{is_inited:false, tablet_status_uncommitted_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x0, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, tablet_status_committed_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x0, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, aux_tablet_info_uncommitted_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x40e642bc, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, aux_tablet_info_committed_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x7fac, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, medium_info_list:{extra_medium_info:{info:1, compat:1, last_compaction_type:0, wait_check_flag:0, last_medium_scn:0}, medium_info_list:{is_inited:false, allocator:null, medium_info:[]}}, auto_inc_seq:{version:1, intervals_count:0, intervals:NULL}}, transfer_info:{ls_id:{id:0}, transfer_start_scn:{val:0, v:0}, transfer_seq:0, has_transfer_table:false, unused_is_transfer_out_deleted:false, src_reorganization_scn:{val:0, v:0}, private_transfer_epoch:-1}, create_schema_version:0, micro_index_clustered:false, major_ckm_info:{is_empty:true}, ddl_replay_status:14, is_storage_schema_cs_replica:false, split_info:{split_info:0, split_src_tablet_id:{id:0}, split_start_scn:{val:18446744073709551615, v:3}}, has_merged_with_mds_info:false, min_ss_tablet_version:{val:0, v:0}, inc_major_snapshot:0, inc_major_replay_scn:{val:0, v:0}})
[2026-06-24 19:15:42.459313] INFO [STORAGE] read_next_range_tablet_metas_ (ob_backup_extern_info_mgr.cpp:781) [858][T1001_BackupDat][T1001][YB420A14CB7B-0006546F0AAD4999-0-0] [lt=0] read tablet meta(path={cur_pos:197, path:“oss://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_03/backup_set_27_full/logstream_1/meta_info_turn_1_retry_0/tablet_info.1.obbak”}, tablet_meta={magic_number:-20230111, version:3, is_empty_shell:false, ls_id:{id:1}, tablet_id:{id:60114}, data_tablet_id:{id:114}, ref_tablet_id:{id:0}, create_scn:{val:1781685775214897001, v:0}, start_scn:{val:1, v:0}, clog_checkpoint_scn:{val:1, v:0}, ddl_checkpoint_scn:{val:1, v:0}, ddl_snapshot_version:0, ddl_start_scn:{val:0, v:0}, snapshot_version:1782237751000849000, multi_version_start:1782237603543575000, compat_mode:0, ha_status:{restore_status:0, data_status:0, expected_status:0, reserved:0}, report_status:{merge_snapshot_version:1782237601143330000, cur_report_version:1782237601143330000, data_checksum:0, row_count:0, found_cg_checksum_error:false}, storage_schema:{this:0x7fac9a9d61e0, storage_schema_version:7, version:0, column_info_simplified:0, merge_engine_type:0, has_ttl_definition:0, was_compaction_ttl:0, compat_mode:0, table_type:12, index_type:0, row_store_type:1, schema_version:1049080, is_cs_replica_compat:0, is_column_table_schema:0, enable_macro_block_bloom_filter:0, column_cnt:3, store_column_cnt:3, tablet_size:134217728, pctfree:10, block_size:16384, progressive_merge_round:1, master_key_id:18446744073709551615, compressor_type:1, encryption:"", encrypt_key:"", is_use_bloomfilter:0, rowkey_cnt:1, rowkey_array:[{column_idx:16, meta_type:{type:“BIGINT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, order:0}], column_cnt:3, column_array:[{meta_type:{type:“BIGINT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, is_column_stored_in_sstable:1, is_rowkey_column:1, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“INT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}], skip_index_cnt:0, skip_idx_attr_array:[], column_group_cnt:1, column_group_array:[{version:1, type:1, compressor_type:1, row_store_type:1, block_size:16384, schema_column_cnt:3, rowkey_column_cnt:3, schema_rowkey_column_cnt:1, column_cnt:5, column_idxs:null}], has_all_column_group:true, micro_block_format_version:1, minor_row_store_type:0, skip_index_level:0}, medium_info_list:{is_inited:true, extra_info:{info:1, compat:1, last_compaction_type:0, wait_check_flag:0, last_medium_scn:0}, list_size:0, medium_info_list:[]}, extra_medium_info:{info:4353, compat:1, last_compaction_type:1, wait_check_flag:1, last_medium_scn:1782237601143330000}, last_persisted_committed_tablet_status:{tablet_status:{val:1, str:“NORMAL”}, transfer_scn:{val:18446744073709551615, v:3}, transfer_ls_id:{id:-1}, data_type:1, create_commit_scn:{val:1781685775396489000, v:0}, create_commit_version:1781685775396489000, delete_commit_scn:{val:18446744073709551615, v:3}, delete_commit_version:-1, start_transfer_commit_version:-1, start_split_commit_version:-1, start_transfer_commit_scn:{val:18446744073709551615, v:3}}, table_store_flag:{with_major_sstable:1, is_user_data_table:0}, max_sync_storage_schema_version:0, ddl_execution_id:-1, ddl_data_format_version:0, max_serialized_medium_scn:0, ddl_commit_scn:{val:0, v:0}, mds_checkpoint_scn:{val:1782285645685897000, v:0}, mds_data:{is_inited:false, tablet_status_uncommitted_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x0, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, tablet_status_committed_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x0, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, aux_tablet_info_uncommitted_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x40e642bc, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, aux_tablet_info_committed_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x7fac, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, medium_info_list:{extra_medium_info:{info:1, compat:1, last_compaction_type:0, wait_check_flag:0, last_medium_scn:0}, medium_info_list:{is_inited:false, allocator:null, medium_info:[]}}, auto_inc_seq:{version:1, intervals_count:0, intervals:NULL}}, transfer_info:{ls_id:{id:0}, transfer_start_scn:{val:0, v:0}, transfer_seq:0, has_transfer_table:false, unused_is_transfer_out_deleted:false, src_reorganization_scn:{val:0, v:0}, private_transfer_epoch:-1}, create_schema_version:0, micro_index_clustered:false, major_ckm_info:{is_empty:true}, ddl_replay_status:14, is_storage_schema_cs_replica:false, split_info:{split_info:0, split_src_tablet_id:{id:0}, split_start_scn:{val:18446744073709551615, v:3}}, has_merged_with_mds_info:false, min_ss_tablet_version:{val:0, v:0}, inc_major_snapshot:0, inc_major_replay_scn:{val:0, v:0}})
[2026-06-24 19:15:42.461780] INFO [STORAGE] read_next_range_tablet_metas_ (ob_backup_extern_info_mgr.cpp:781) [858][T1001_BackupDat][T1001][YB420A14CB7B-0006546F0AAD4999-0-0] [lt=0] read tablet meta(path={cur_pos:197, path:“oss://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_03/backup_set_27_full/logstream_1/meta_info_turn_1_retry_0/tablet_info.1.obbak”}, tablet_meta={magic_number:-20230111, version:3, is_empty_shell:false, ls_id:{id:1}, tablet_id:{id:60328}, data_tablet_id:{id:328}, ref_tablet_id:{id:0}, create_scn:{val:1781685775214897001, v:0}, start_scn:{val:1, v:0}, clog_checkpoint_scn:{val:1, v:0}, ddl_checkpoint_scn:{val:1, v:0}, ddl_snapshot_version:0, ddl_start_scn:{val:0, v:0}, snapshot_version:1782237751304185000, multi_version_start:1782237603543575000, compat_mode:0, ha_status:{restore_status:0, data_status:0, expected_status:0, reserved:0}, report_status:{merge_snapshot_version:1782237601143330000, cur_report_version:1782237601143330000, data_checksum:0, row_count:0, found_cg_checksum_error:false}, storage_schema:{this:0x7fac9a9d61e0, storage_schema_version:7, version:0, column_info_simplified:0, merge_engine_type:0, has_ttl_definition:0, was_compaction_ttl:0, compat_mode:0, table_type:12, index_type:0, row_store_type:1, schema_version:1052632, is_cs_replica_compat:0, is_column_table_schema:0, enable_macro_block_bloom_filter:0, column_cnt:3, store_column_cnt:3, tablet_size:134217728, pctfree:10, block_size:16384, progressive_merge_round:1, master_key_id:18446744073709551615, compressor_type:1, encryption:"", encrypt_key:"", is_use_bloomfilter:0, rowkey_cnt:1, rowkey_array:[{column_idx:16, meta_type:{type:“BIGINT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, order:0}], column_cnt:3, column_array:[{meta_type:{type:“BIGINT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, is_column_stored_in_sstable:1, is_rowkey_column:1, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“INT UNSIGNED”, collation:“binary”, coercibility:“NUMERIC”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}, {meta_type:{type:“VARCHAR”, collation:“binary”, coercibility:“INVALID”}, is_column_stored_in_sstable:1, is_rowkey_column:0, is_generated_column:0, orig_default_value:{“NULL”:“NULL”}}], skip_index_cnt:0, skip_idx_attr_array:[], column_group_cnt:1, column_group_array:[{version:1, type:1, compressor_type:1, row_store_type:1, block_size:16384, schema_column_cnt:3, rowkey_column_cnt:3, schema_rowkey_column_cnt:1, column_cnt:5, column_idxs:null}], has_all_column_group:true, micro_block_format_version:1, minor_row_store_type:0, skip_index_level:0}, medium_info_list:{is_inited:true, extra_info:{info:1, compat:1, last_compaction_type:0, wait_check_flag:0, last_medium_scn:0}, list_size:0, medium_info_list:[]}, extra_medium_info:{info:4353, compat:1, last_compaction_type:1, wait_check_flag:1, last_medium_scn:1782237601143330000}, last_persisted_committed_tablet_status:{tablet_status:{val:1, str:“NORMAL”}, transfer_scn:{val:18446744073709551615, v:3}, transfer_ls_id:{id:-1}, data_type:1, create_commit_scn:{val:1781685775396489000, v:0}, create_commit_version:1781685775396489000, delete_commit_scn:{val:18446744073709551615, v:3}, delete_commit_version:-1, start_transfer_commit_version:-1, start_split_commit_version:-1, start_transfer_commit_scn:{val:18446744073709551615, v:3}}, table_store_flag:{with_major_sstable:1, is_user_data_table:0}, max_sync_storage_schema_version:0, ddl_execution_id:-1, ddl_data_format_version:0, max_serialized_medium_scn:0, ddl_commit_scn:{val:0, v:0}, mds_checkpoint_scn:{val:1782285645685897000, v:0}, mds_data:{is_inited:false, tablet_status_uncommitted_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x0, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, tablet_status_committed_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x0, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, aux_tablet_info_uncommitted_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x40e642bc, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, aux_tablet_info_committed_kv:{k:{mds_table_id:255, mds_unit_id:255, crc_check_number:0x7fac, allocator:(nil), user_data:ERROR:table_id not in tuple(255)}, v:{mds_table_id:255, mds_unit_id:255, crc_check_number:0xffffffff, allocator:(nil), writer_id:-1, seq_no:0, redo_scn:{val:18446744073709551615, v:3}, end_scn:{val:18446744073709551615, v:3}, trans_version:{val:18446744073709551615, v:3}, status:UNKNOWN|UNKNOWN|INIT|False, user_data:null}}, medium_info_list:{extra_medium_info:{info:1, compat:1, last_compaction_type:0, wait_check_flag:0, last_medium_scn:0}, medium_info_list:{is_inited:false, allocator:null, medium_info:[]}}, auto_inc_seq:{version:1, intervals_count:0, intervals:NULL}}, transfer_info:{ls_id:{id:0}, transfer_start_scn:{val:0, v:0}, transfer_seq:0, has_transfer_table:false, unused_is_transfer_out_deleted:false, src_reorganization_scn:{val:0, v:0}, private_transfer_epoch:-1}, create_schema_version:0, micro_index_clustered:false, major_ckm_info:{is_empty:true}, ddl_replay_status:14, is_storage_schema_cs_replica:false, split_info:{split_info:0, split_src_tablet_id:{id:0}, split_start_scn:{val:18446744073709551615, v:3}}, has_merged_with_mds_info:false, min_ss_tablet_version:{val:0, v:0}, inc_major_snapshot:0, inc_major_replay_scn:{val:0, v:0}})

1 个赞
#11

你这样搜一下grep ‘YB420A14CB7B-0006546F0AAD4999’ rootservice.log* | grep -E ‘9120|write_tablet|tablet_log_stream’

1 个赞
#13

ob4.6.0.0备份rootservice异常日志.txt (48.0 KB)

1 个赞
#14

了解了解

#15

是不是找售后支持好点儿。

#16

看你新发的这个任务 看日志信息是这个原因
backup_meta_finish_ 生成 meta 文件清单时访问 infos/meta_info/root_key.obbak ，OSS 返回 404。租户 encryption_mode=NONE ，write_root_key_info 未写入该文件，但 finish 阶段仍强制读取，导致失败。

建议把备份的文件都清理了 重新发起全量备份

– 确认无进行中的备份
SELECT * FROM oceanbase.CDB_OB_BACKUP_JOBS WHERE TENANT_ID = 1001;

– 删除失败的备份集（按实际 backup_set_id 调整）
ALTER SYSTEM DELETE BACKUPSET 24 TENANT = ‘obmysql’;

– 确认归档正常
SELECT TENANT_ID, STATUS, PATH FROM oceanbase.CDB_OB_ARCHIVELOG WHERE TENANT_ID = 1001;

– 重新发起全量备份
ALTER SYSTEM BACKUP TENANT = ‘obmysql’;

如果备份以后报错 查一下信息 取一下备份期间的rootservice.log日志和observer.log日志
– sys 租户
SELECT JOB_ID, BACKUP_SET_ID, STATUS, RESULT, COMMENT, PATH, START_TIMESTAMP, END_TIMESTAMP
FROM oceanbase.CDB_OB_BACKUP_JOB_HISTORY
WHERE TENANT_ID = 1001
ORDER BY JOB_ID DESC LIMIT 5;

SELECT JOB_ID, BACKUP_SET_ID, STATUS, TASK_ID, COMMENT
FROM oceanbase.CDB_OB_BACKUP_TASKS
WHERE TENANT_ID = 1001;

也可以根据这样的命令验证一下oss写权限是否有问题

export OB_ADMIN_LOG_DIR=/tmp/ob_admin_log
mkdir -p $OB_ADMIN_LOG_DIR

./ob_admin test_io_device
-d ‘s3://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_01’
-s ‘host=datamars-backup-sit-app-1147-sd50.oss-cn-uat.midea.com&access_id=xxx&access_key=xxx’

#17

好，我试下

#18

要装ob_admin指令，我看官网上最新是4.5.0_CE，兼容吗

#19

也是可以的 你安装以后 测试一下

#20

用了4.6的util。
[root@ob-821add4e6319ed4bb5af4-11987-zone1-swpfsq ~]# ob_admin test_io_device -d ‘s3://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_01’ -s ‘host=datamars-backup-sit-app-1147-sd50.oss-cn-uat.midea.com&access_id=xxx&access_key=xxx’
[NOTICE] If specific log is required, you need to set the environment variable OB_ADMIN_LOG_DIR.
for example: export OB_ADMIN_LOG_DIR=~/.ob_admin_log
please notice that log files should not be outputted to OceanBase’s clog directory.
succ to open, filename=/dev/null, fd=5, wf_fd=2
succ to open, filename=/dev/null, fd=6, wf_fd=2
[RUN TEST1] Backup dest connectivity
ERROR INFO: The path is inaccessible, please check the path and the storage info parameter
ERROR CODE: -9118 OB_INVALID_OBJECT_STORAGE_ENDPOINT
[ FAILED! ] Backup dest connectivity (27 ms)

image1720×752 99 KB

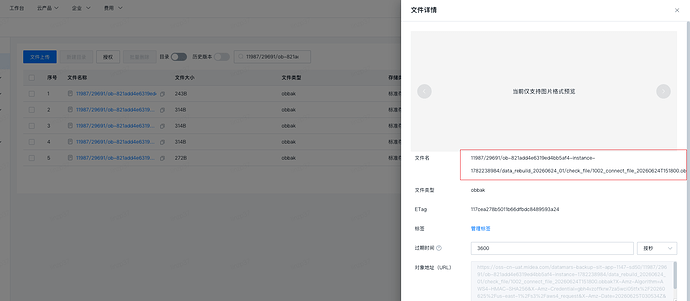

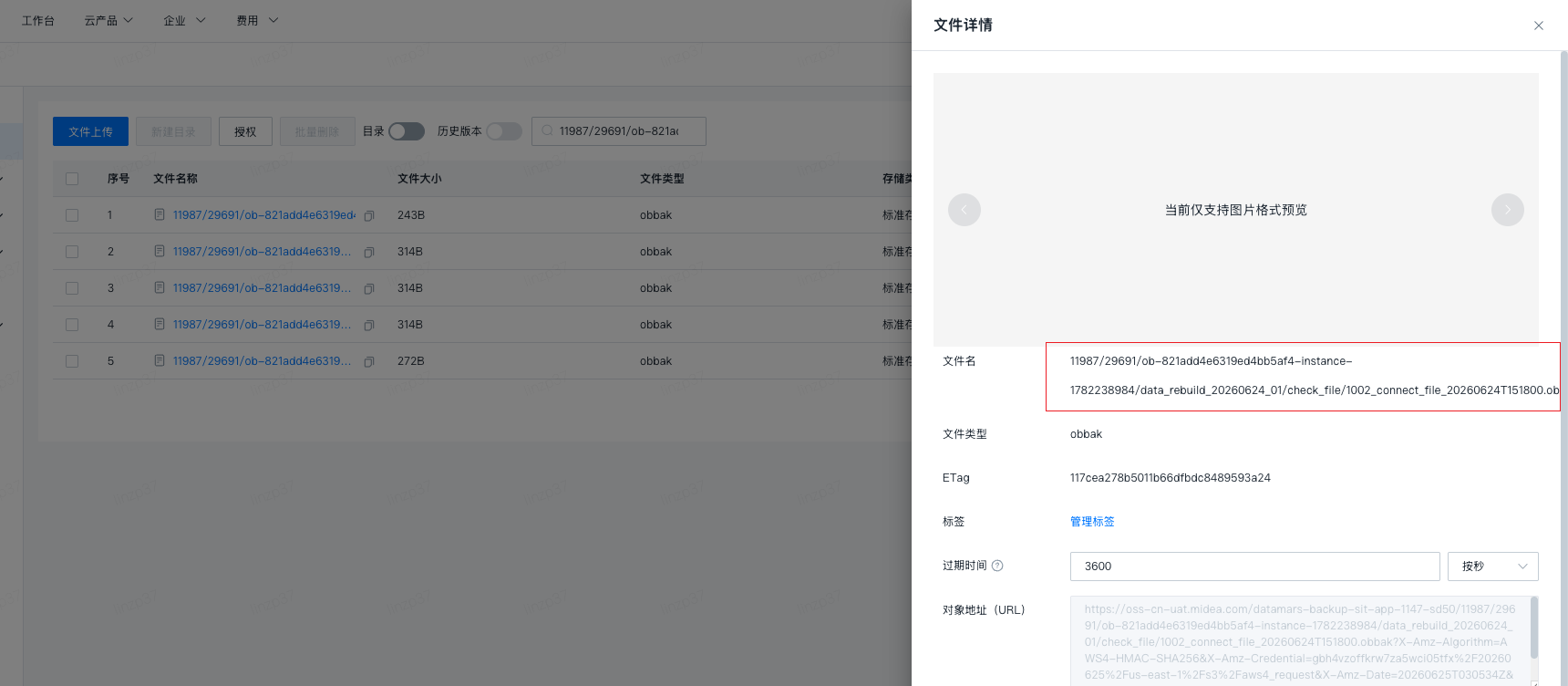

oss上有，但是ob_admin报错

#21

地址换成oss报这个:
[root@ob-821add4e6319ed4bb5af4-11987-zone1-swpfsq ~]# ob_admin test_io_device -d ‘oss://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/data_rebuild_20260624_01’ -s ‘host=datamars-backup-sit-app-1147-sd50.oss-cn-uat.midea.com&access_id=xxx&access_key=xxx’
[NOTICE] If specific log is required, you need to set the environment variable OB_ADMIN_LOG_DIR.
for example: export OB_ADMIN_LOG_DIR=~/.ob_admin_log
please notice that log files should not be outputted to OceanBase’s clog directory.
succ to open, filename=/dev/null, fd=5, wf_fd=2
succ to open, filename=/dev/null, fd=6, wf_fd=2
[RUN TEST1] Backup dest connectivity
[2026-06-25 11:11:41.439] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:91 Xml format invalid, root node name is not Error.
[2026-06-25 11:11:41.439] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:92 Xml Content:SignatureDoesNotMatchThe request signature we calculated does not match the signature you provided. Check your key and signing method.datamars-backup-sit-app-1147-sd50.datamars-backup-sit-app-1147-sd50oss-f856b97cfcfb0d7e696dcc8c2952a5d0
[2026-06-25 11:11:41.469] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:91 Xml format invalid, root node name is not Error.
[2026-06-25 11:11:41.469] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:92 Xml Content:SignatureDoesNotMatchThe request signature we calculated does not match the signature you provided. Check your key and signing method.datamars-backup-sit-app-1147-sd50.datamars-backup-sit-app-1147-sd50oss-b6f3f0c5e21d0d928c29780ecefd6e18
[2026-06-25 11:11:41.549] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:91 Xml format invalid, root node name is not Error.
[2026-06-25 11:11:41.549] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:92 Xml Content:SignatureDoesNotMatchThe request signature we calculated does not match the signature you provided. Check your key and signing method.datamars-backup-sit-app-1147-sd50.datamars-backup-sit-app-1147-sd50oss-1e7053e936a1a7219eb8e620e40a97ad
[2026-06-25 11:11:41.782] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:91 Xml format invalid, root node name is not Error.
[2026-06-25 11:11:41.782] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:92 Xml Content:SignatureDoesNotMatchThe request signature we calculated does not match the signature you provided. Check your key and signing method.datamars-backup-sit-app-1147-sd50.datamars-backup-sit-app-1147-sd50oss-514fdf251ef9a53e4991c2789eab1a7c
[2026-06-25 11:11:42.463] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:91 Xml format invalid, root node name is not Error.
[2026-06-25 11:11:42.463] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:92 Xml Content:SignatureDoesNotMatchThe request signature we calculated does not match the signature you provided. Check your key and signing method.datamars-backup-sit-app-1147-sd50.datamars-backup-sit-app-1147-sd50oss-a039477236ea1e70efde958ca88a6c73
[2026-06-25 11:11:44.493] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:91 Xml format invalid, root node name is not Error.
[2026-06-25 11:11:44.493] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:92 Xml Content:SignatureDoesNotMatchThe request signature we calculated does not match the signature you provided. Check your key and signing method.datamars-backup-sit-app-1147-sd50.datamars-backup-sit-app-1147-sd50oss-c3b895f5d70815070fa369e74d0073e2
[2026-06-25 11:11:49.499] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:91 Xml format invalid, root node name is not Error.
[2026-06-25 11:11:49.499] 140615038514048 /home/jenkins/agent/workspace/ob_artifacte_local_artifact/ob_source_code_dir/aliyun-oss-c-sdk-3.11.2/oss_c_sdk/aos_status.c:92 Xml Content:SignatureDoesNotMatchThe request signature we calculated does not match the signature you provided. Check your key and signing method.datamars-backup-sit-app-1147-sd50.datamars-backup-sit-app-1147-sd50oss-46d80bddf039ffb7fef389573c270751

#22

export OB_ADMIN_LOG_DIR=/tmp/ob_admin_log
mkdir -p $OB_ADMIN_LOG_DIR

ob_admin test_io_device
-d ‘s3://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/ob_admin_test’
-s ‘host=oss-cn-uat.midea.com&access_id=你的AK&access_key=你的SK&checksum_type=md5’

ob_admin test_io_device
-d ‘oss://datamars-backup-sit-app-1147-sd50/11987/29691/ob-821add4e6319ed4bb5af4-instance-1782238984/ob_admin_test’
-s ‘host=oss-cn-uat.midea.com&access_id=你的AK&access_key=你的SK&checksum_type=md5’
access_id access_key checksum_type 这几个信息 你填写了么？按照我发的命令 重新把信息填写一下 测试一下看看 建议用新目录测试
