部署OCP完成，其中有组件obproxy；

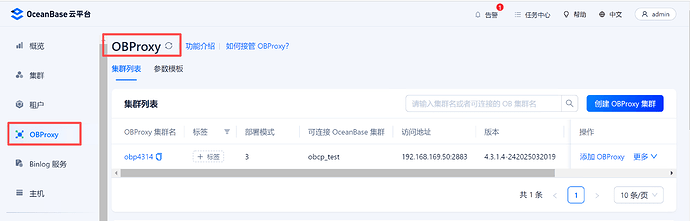

但这个obproxy 在OCP 图形化并没有看到；
图中的obproxy是 后部署的集群
OCP服务器上的组件：
[admin@rocky95 data]$ obd cluster list
+----------------------------------------------------------------+
| Cluster List |
+----------+-----------------------------------+-----------------+
| Name | Configuration Path | Status (Cached) |
+----------+-----------------------------------+-----------------+
| obtest | /home/admin/.obd/cluster/obtest | configured |
| ocpee435 | /home/admin/.obd/cluster/ocpee435 | running |
+----------+-----------------------------------+-----------------+
Trace ID: 4c9fa828-c360-11f0-84ba-005056ab9ab8
If you want to view detailed obd logs, please run: obd display-trace 4c9fa828-c360-11f0-84ba-005056ab9ab8
[admin@rocky95 data]$ obd cluster display ocpee435
Get local repositories and plugins ok
Open ssh connection ok
Connect to ocp-server ok
+--------------------------------------------------------------+
| ocp-server |
+----------------------------+----------+-------------+--------+
| url | username | password | status |
+----------------------------+----------+-------------+--------+
| http://192.168.169.49:8080 | admin | 'Admin1234' | active |
+----------------------------+----------+-------------+--------+
Connect to observer 192.168.169.49:2881 ok
Wait for observer init ok
+--------------------------------------------------+
| oceanbase |
+----------------+---------+------+-------+--------+
| ip | version | port | zone | status |
+----------------+---------+------+-------+--------+
| 192.168.169.49 | 4.2.1.8 | 2881 | zone1 | ACTIVE |
+----------------+---------+------+-------+--------+
obclient -h192.168.169.49 -P2881 -uroot@sys -p'Admin1234' -Doceanbase -A
cluster unique id: ace61153-448d-5c9c-af22-8e501026bb10-19a877c309a-08010204
Connect to obproxy ok
+--------------------------------------------------------------------+
| obproxy |
+----------------+------+-----------------+-----------------+--------+
| ip | port | prometheus_port | rpc_listen_port | status |
+----------------+------+-----------------+-----------------+--------+
| 192.168.169.49 | 2883 | 2884 | 2885 | active |
+----------------+------+-----------------+-----------------+--------+
obclient -h192.168.169.49 -P2883 -uroot@proxysys -p'ya2qFM2nGL' -Doceanbase -A
Trace ID: 53d37d54-c360-11f0-af11-005056ab9ab8
If you want to view detailed obd logs, please run: obd display-trace 53d37d54-c360-11f0-af11-005056ab9ab8
