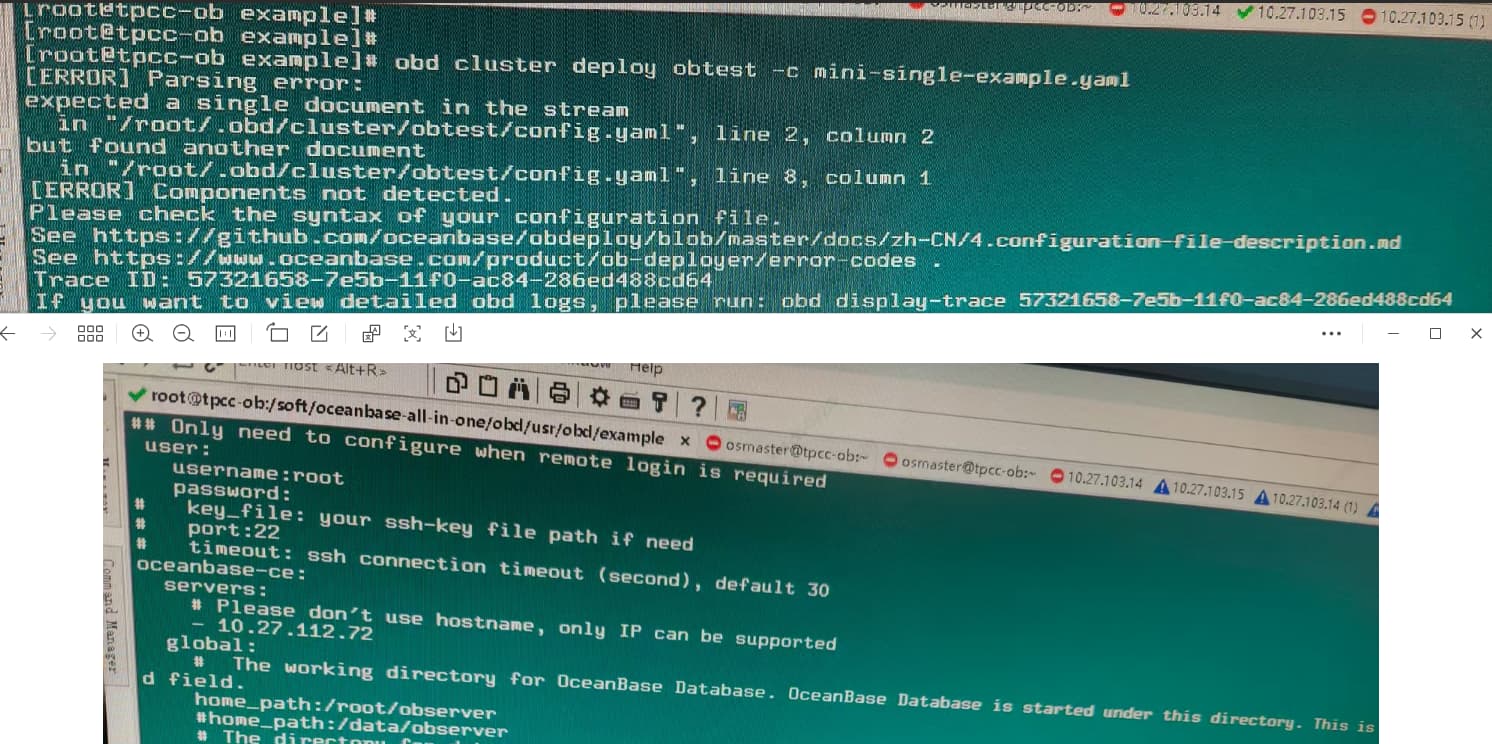

这是报错信息，配置文件内容，密码我给隐藏了
组件问题，麻烦提供一份yaml文件看看
如果对yaml文件不熟悉可使用obd web白屏化部署方式。
用白屏部署比较好吧。
如果看不懂报错的英文是什么意思，就老老实实翻译一下
仅看照片来说是components组件问题，多半是yaml文件没配置好，这文件对格式是有要求的，可以检查下
1 个赞
白屏没看懂。。。。

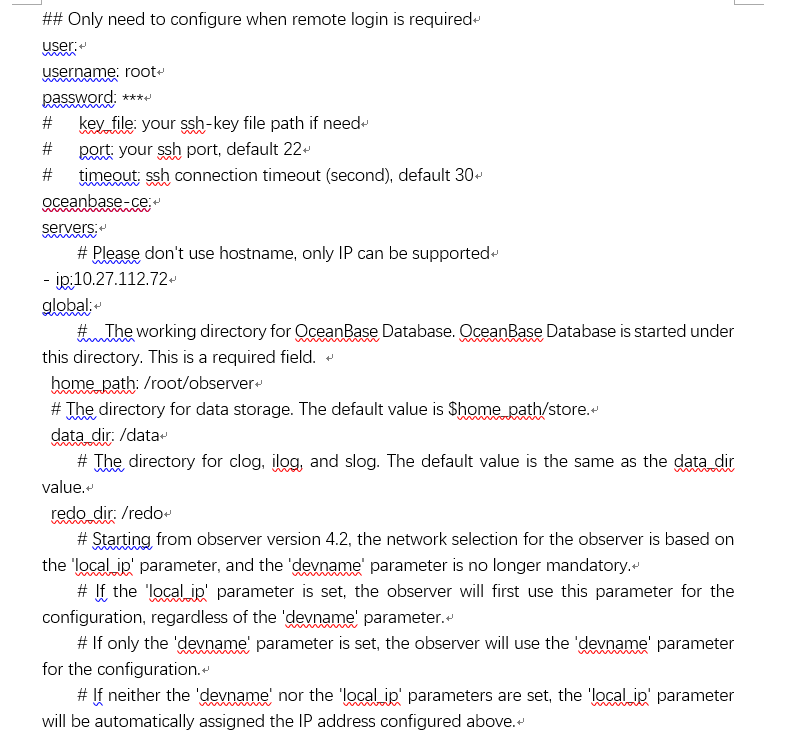

Only need to configure when remote login is required
user:
username: root
password: ***
key_file: your ssh-key file path if need
port: your ssh port, default 22
timeout: ssh connection timeout (second), default 30
oceanbase-ce:
servers:
# Please don’t use hostname, only IP can be supported
- ip:10.27.112.72
global:The working directory for OceanBase Database. OceanBase Database is started under this directory. This is a required field.
home_path: /root/observer
The directory for data storage. The default value is $home_path/store.
data_dir: /data
# The directory for clog, ilog, and slog. The default value is the same as the data_dir value.
redo_dir: /redo
# Starting from observer version 4.2, the network selection for the observer is based on the ‘local_ip’ parameter, and the ‘devname’ parameter is no longer mandatory.
# If the ‘local_ip’ parameter is set, the observer will first use this parameter for the configuration, regardless of the ‘devname’ parameter.
# If only the ‘devname’ parameter is set, the observer will use the ‘devname’ parameter for the configuration.
# If neither the ‘devname’ nor the ‘local_ip’ parameters are set, the ‘local_ip’ parameter will be automatically assigned the IP address configured above.

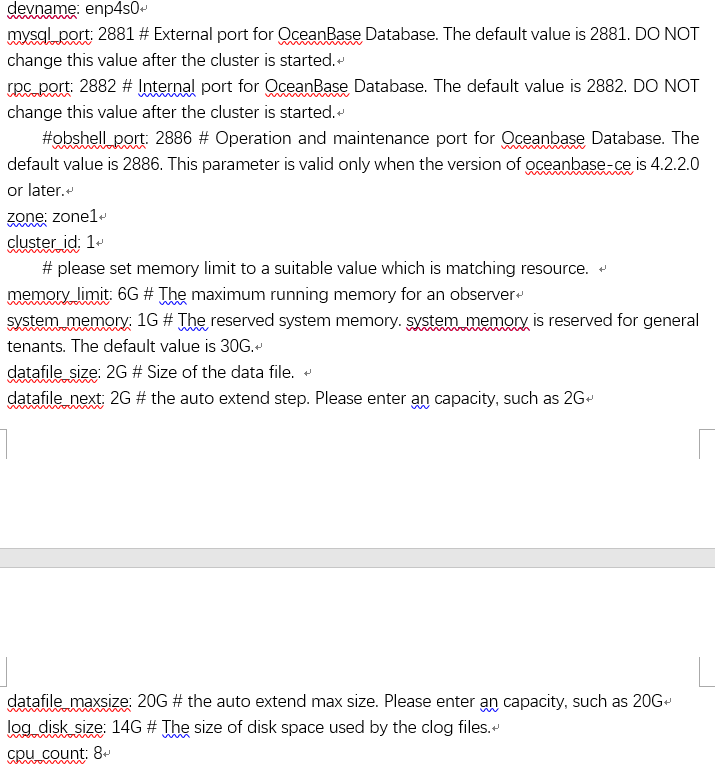

devname: enp4s0
mysql_port: 2881 # External port for OceanBase Database. The default value is 2881. DO NOT change this value after the cluster is started.
rpc_port: 2882 # Internal port for OceanBase Database. The default value is 2882. DO NOT change this value after the cluster is started.
#obshell_port: 2886 # Operation and maintenance port for Oceanbase Database. The default value is 2886. This parameter is valid only when the version of oceanbase-ce is 4.2.2.0 or later.
zone: zone1
cluster_id: 1
# please set memory limit to a suitable value which is matching resource.
memory_limit: 6G # The maximum running memory for an observer
system_memory: 1G # The reserved system memory. system_memory is reserved for general tenants. The default value is 30G.
datafile_size: 2G # Size of the data file.
datafile_next: 2G # the auto extend step. Please enter an capacity, such as 2G
datafile_maxsize: 20G # the auto extend max size. Please enter an capacity, such as 20G
log_disk_size: 14G # The size of disk space used by the clog files.
cpu_count: 8

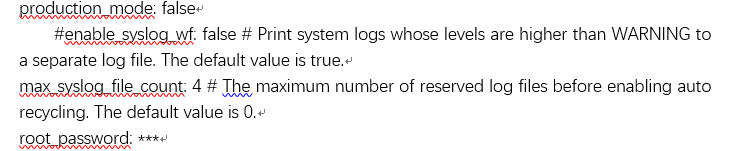

production_mode: false
#enable_syslog_wf: false # Print system logs whose levels are higher than WARNING to a separate log file. The default value is true.
max_syslog_file_count: 4 # The maximum number of reserved log files before enabling auto recycling. The default value is 0.
root_password: ***
三张截图是当前格式的
主机用户那里的端口和ssh免密配置一下
看报错就是 yaml文件有问题，导致不生效。
建议你使用obd web白屏化部署
