ocp告警，恢复时，会重复发送两次恢复通知

AntTech_GASIPE · 2025 年4 月 10 日 16:04

【使用环境】生产环境
【 OB or 其他组件】
OCP 社区版
版本号: 4.3.5-20250319105844
发布日期: 2025年3月19日

【问题描述】
ocp告警，有设置恢复时发送通知，

目前问题：

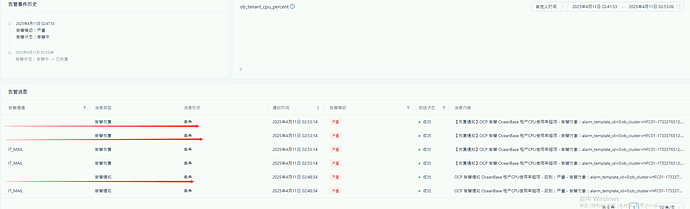

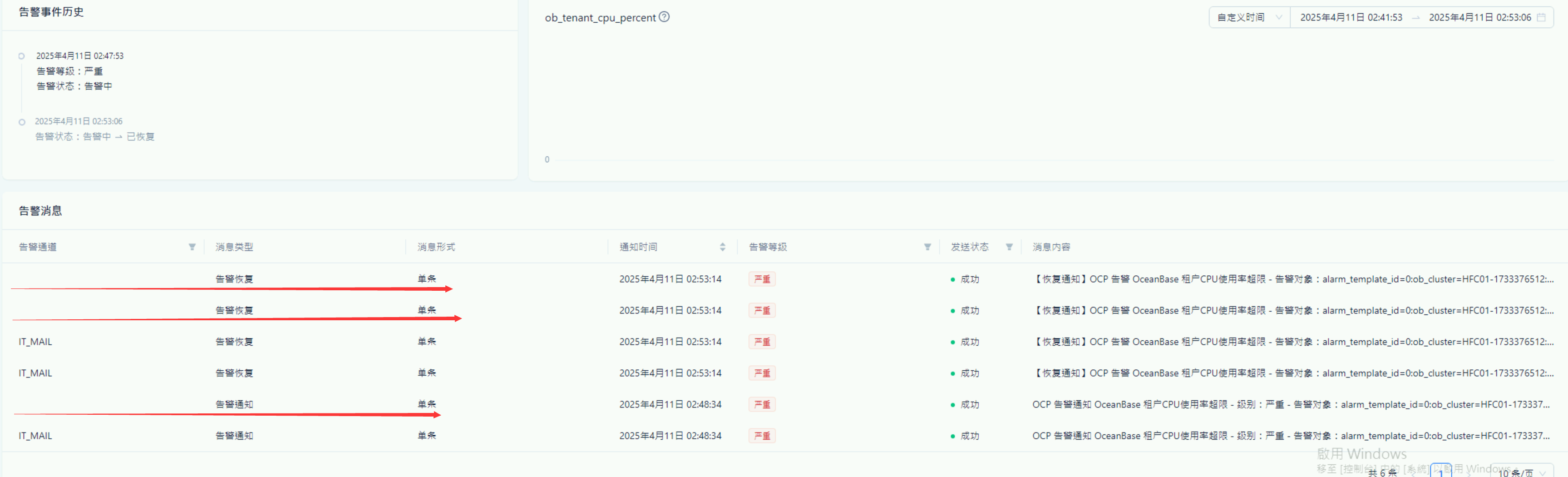

每次告警恢复时，都会重复发送，会收到两份完全一样的通知信息。

请教一下，这个要如何排查？

旭辉 · 2025 年4 月 10 日 18:28

我看下这个问题，有进展会尽快回复您

AntTech_GASIPE · 2025 年4 月 21 日 12:14

请问这个现在有什么进展么？

旭辉 · 2025 年4 月 21 日 16:39

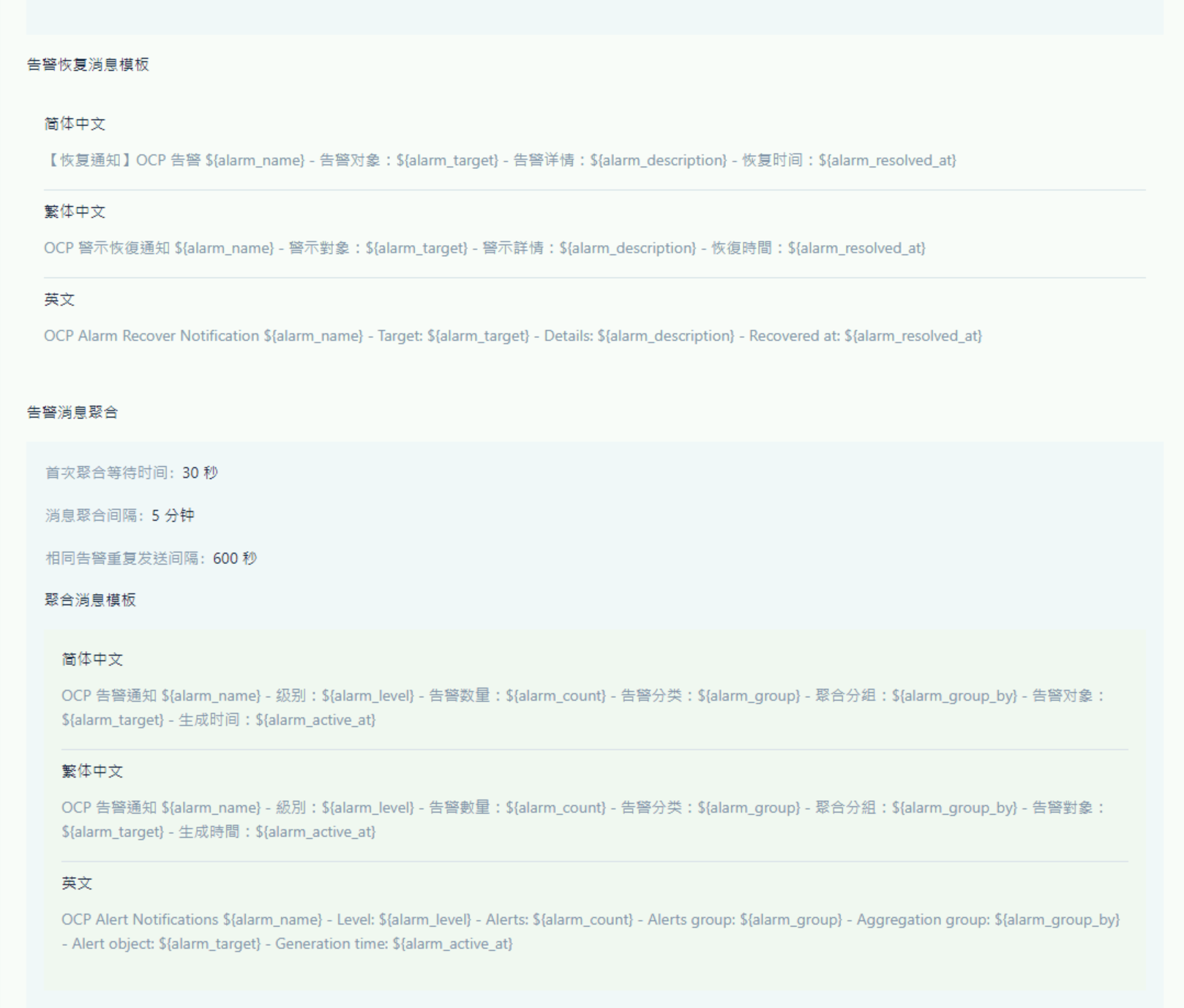

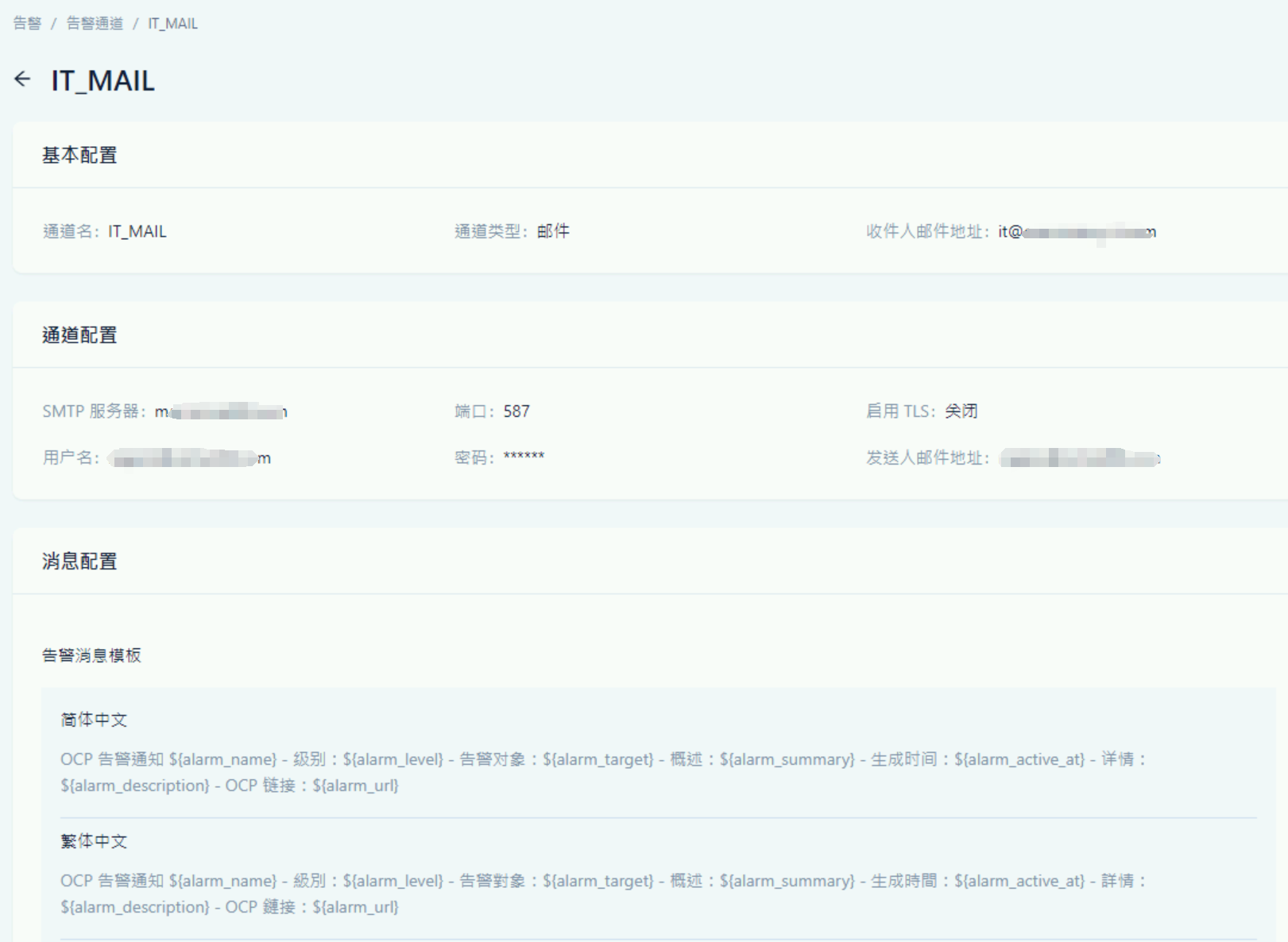

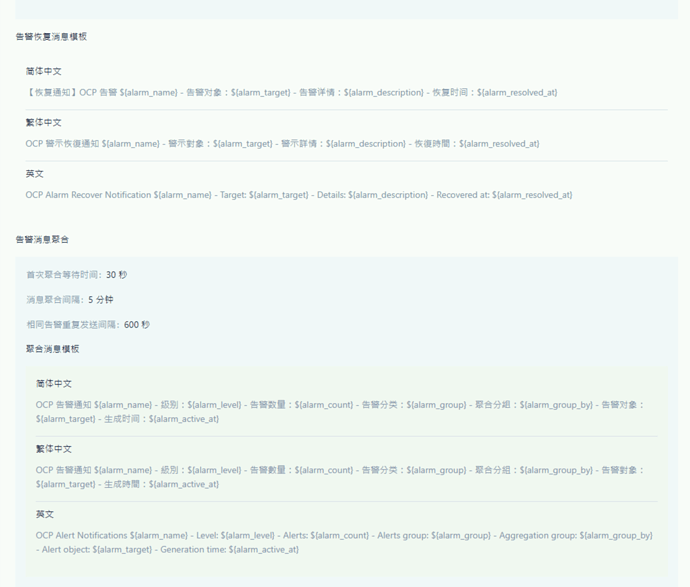

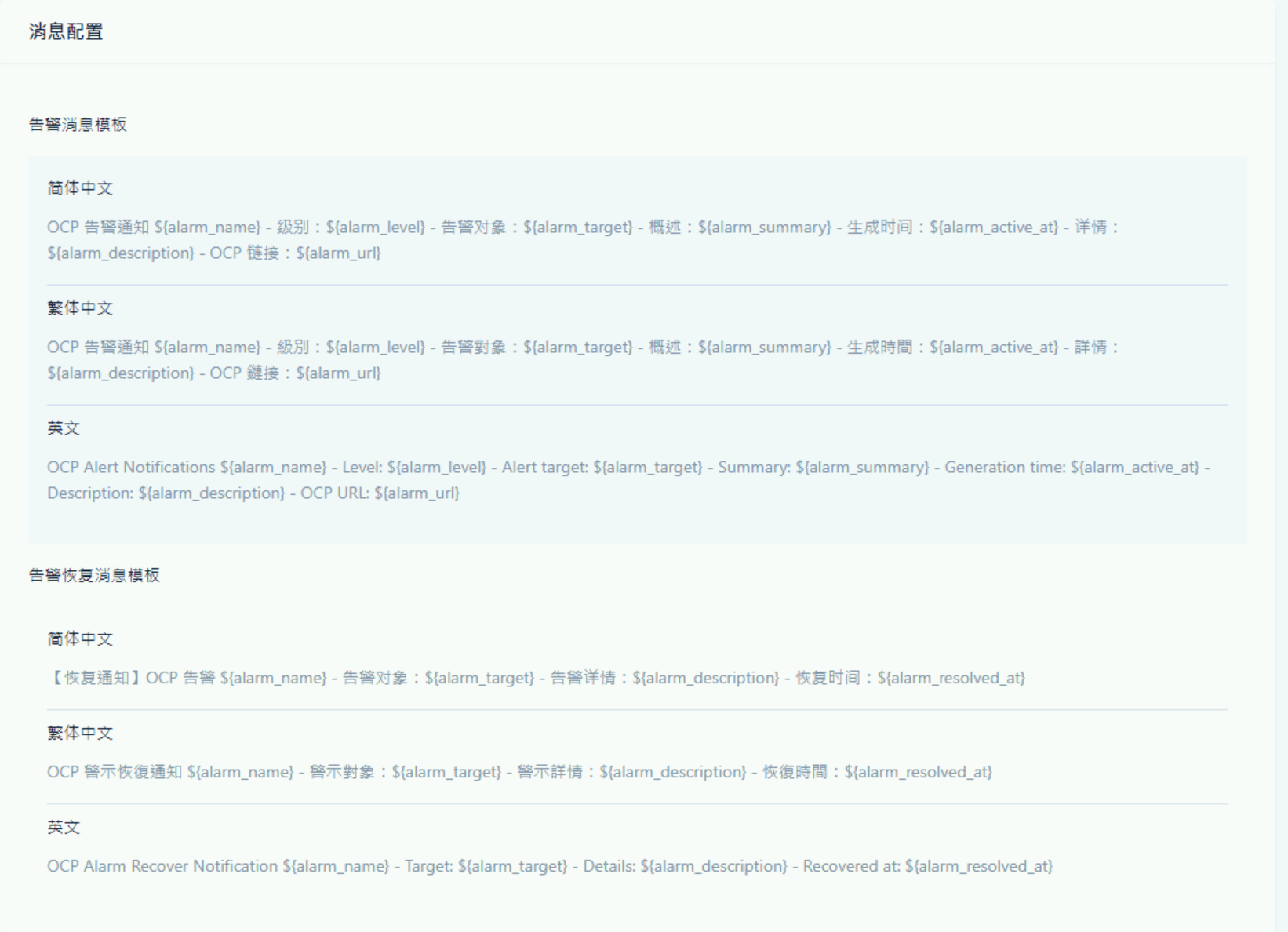

麻烦发下告警通道配置

AntTech_GASIPE · 2025 年4 月 21 日 17:02

旭辉 · 2025 年4 月 21 日 17:07

相同告警重复发送间隔设置为3600s 观察下

相同告警重复发送间隔：相同告警是否在该间隔内有发送过，若发送过，则不发出该消息。相同告警是告警的id相同，如果告警恢复了，新产生的告警id会递增，即不是相同告警。

AntTech_GASIPE · 2025 年4 月 21 日 20:16

改了，没有用，还是一样的

AntTech_GLDLRX · 2025 年4 月 21 日 22:02

好细心，我看了下我们的也是这样的

旭辉 · 2025 年4 月 22 日 09:36

我咨询下这块的老师看下

旭辉 · 2025 年4 月 22 日 10:41

麻烦发下告警恢复通知发送时候的ocp-server.log日志

AntTech_GASIPE · 2025 年4 月 22 日 11:27

ocp-server.log (603.7 KB)

附件日志就是这条报警的时间段

旭辉 · 2025 年4 月 22 日 13:55

是触发了两次告警恢复通知，我们看下

2025-04-22 10:38:53.959  INFO 23259 --- [alarm-task-1,ac8c815e516493b1,0a8b771376cd9f91] c.o.o.a.s.OcpAlarmNotificationService    : create alarm notification, id=13148
2025-04-22 10:38:53.960  INFO 23259 --- [alarm-task-1,ac8c815e516493b1,0a8b771376cd9f91] c.o.o.alarm.core.process.AlarmProcessor  : message distribute done, channelId=1, notificationCount=1, createdCount=1, message=【恢复通知】OCP 告警 SQL inspection, SQL performance degradation   - 告警对象：alarm_template_id=0:ob_cluster=HFC01-1733376512:tenant_name=HF05:db_name=ssdi5:sql_id=AC5BB1475D4815E805AEE6BFFE8D9C75   - 告警详情：During the time period 2025-04-22T10:17:01 - 2025-04-22T10:17:31, tenant HF05, database ssdi5, found anomaly SQL AC5BB1475D4815E805AEE6BFFE8D9C75, performance degradation. Average CPU time 30.63 ms, average response time 30.65 ms, baseline time period 2025-04-22T09:55:01 - 2025-04-22T10:12:07, average CPU time 1.87 ms, average response time 1.9 ms, it is recommended to [refresh PlanCache, current limit], whether the PlanCache has been automatically refreshed: false.   - 恢复时间：2025-04-22T02:38:53Z
2025-04-22 10:38:53.960  INFO 23259 --- [alarm-task-1,ac8c815e516493b1,0a8b771376cd9f91] c.o.o.a.c.d.UserSubscribedJudger         : calc subscribed users, channelId=1, alarmIds=[6305], alarmType=oas_anomaly_sql_from_sql_inspection_perf_degradation, subscribedUserCount=1
2025-04-22 10:38:53.961  INFO 23259 --- [alarm-task-1,ac8c815e516493b1,0a8b771376cd9f91] c.o.o.a.c.d.CommonMessageDistributor     : distribute notification done, channelId=1, alarmType=oas_anomaly_sql_from_sql_inspection_perf_degradation, recipientCount=1
2025-04-22 10:38:53.961  INFO 23259 --- [alarm-task-1,ac8c815e516493b1,0a8b771376cd9f91] c.o.o.alarm.core.process.AlarmProcessor  : aggregate result distribute, channelId=1, groupKey=6305, alarmIds=[6305], distributedCount=1
2025-04-22 10:38:53.963  INFO 23259 --- [alarm-task-1,ac8c815e516493b1,0a8b771376cd9f91] c.o.o.a.s.OcpAlarmNotificationService    : create alarm notification, id=13149
2025-04-22 10:38:53.964  INFO 23259 --- [alarm-task-1,ac8c815e516493b1,0a8b771376cd9f91] c.o.o.alarm.core.process.AlarmProcessor  : message distribute done, channelId=1, notificationCount=1, createdCount=1, message=【恢复通知】OCP 告警 SQL inspection, SQL performance degradation   - 告警对象：alarm_template_id=0:ob_cluster=HFC01-1733376512:tenant_name=HF05:db_name=ssdi5:sql_id=AC5BB1475D4815E805AEE6BFFE8D9C75   - 告警详情：During the time period 2025-04-22T10:17:01 - 2025-04-22T10:17:31, tenant HF05, database ssdi5, found anomaly SQL AC5BB1475D4815E805AEE6BFFE8D9C75, performance degradation. Average CPU time 30.63 ms, average response time 30.65 ms, baseline time period 2025-04-22T09:55:01 - 2025-04-22T10:12:07, average CPU time 1.87 ms, average response time 1.9 ms, it is recommended to [refresh PlanCache, current limit], whether the PlanCache has been automatically refreshed: false.   - 恢复时间：2025-04-22T02:38:53Z
2025-04-22 10:38:53.964  INFO 23259 --- [alarm-task-1,ac8c815e516493b1,0a8b771376cd9f91] c.o.o.alarm.core.process.AlarmProcessor  : process alarm, channelId=1, updatedAlarmsCount=2, sendCount=2
2025-04-22 10:38:53.964  INFO 23259 --- [alarm-task-1,ac8c815e516493b1,0a8b771376cd9f91] c.o.o.alarm.core.process.AlarmProcessor  : aggregate done, channelId=2, alarmsCount=2, resultsCount=2
2025-04-22 10:38:53.964  INFO 23259 --- [alarm-task-1,ac8c815e516493b1,0a8b771376cd9f91] c.o.o.alarm.core.process.AlarmProcessor  : processRecovers, channelsCount=2, recoverDistributorCount=2, sentRecoverMessageCount=2
2025-04-22 10:38:53.966  INFO 23259 --- [alarm-task-1,ac8c815e516493b1,0a8b771376cd9f91] c.o.o.alarm.core.process.AlarmProcessor  : process done, currentTimestamp=2025-04-22T10:38:53.842291+08:00

旭辉 · 2025 年4 月 22 日 14:38

登陆ocp_meta租户，查询下meta_database的表ocp2_alarm_channel

obclient -hxxx -P2881 -uroot@ocp_meta -p'xxx' -Dmeta_database -A

select * from ocp2_alarm_channel;

旭辉 · 2025 年4 月 22 日 16:33

有查出结果吗？

AntTech_GASIPE · 2025 年4 月 22 日 17:08

obclient(root@ocp_meta)[meta_database]> select * from ocp2_alarm_channel \G
*************************** 1. row ***************************
id: 1
gmt_create: 2024-12-12 15:37:13
gmt_modified: 2025-04-22 16:58:25
update_time: 2025-04-21 17:10:00
created_by: admin
modified_by: admin
name: NULL
is_default: 0
last_sent_at: 2025-04-22 16:58:26
channel_type: Email
recipient_addr_source: uid
is_group_channel: 0
message_template1: NULL
message_template2: NULL
channel_settings_json: {“emailChannel”:{“fromEmail":"XXX@XXX.com”,“password”:“XXX”,“smtpHost”:“mail.XXX.com”,“smtpPort”:587,“toEMailList”:[“it@XXX.com”],“username":"XXX@XXX.com”}}
is_aggregation_enabled: 1
aggregation_message_template1: NULL
aggregation_message_template2: NULL
aggregation_rule_json: {“aggregateIntervalSeconds”:300,“aggregateWaitSeconds”:30,“repeatIntervalSeconds”:3600}
name2: NULL
name3: NULL
message_template3: NULL
aggregation_message_template3: NULL
message_language: zh_CN
response_validation: success
name_i18n: {“name_zh_tw”:“IT_MAIL”,“name_zh_cn”:“IT_MAIL”}
message_template_i18n: {“message_template_en_us”:"OCP Alert Notifications ${alarm_name}\n - Level: ${alarm_level}\n - Alert target: ${alarm_target}\n - Summary: ${alarm_summary}\n - Generation time: ${alarm_active_at}\n - Description: ${alarm_description}\n - OCP URL: ${alarm_url}\n ",“message_template_zh_cn”:"OCP 告警通知 ${alarm_name}\n - 级别：${alarm_level}\n - 告警对象：${alarm_target}\n - 概述：${alarm_summary}\n - 生成时间：${alarm_active_at}\n - 详情：${alarm_description}\n - OCP 链接：${alarm_url}\n ",“message_template_zh_tw”:“OCP 告警通知 ${alarm_name}\n - 級別：${alarm_level}\n - 告警對象：${alarm_target}\n - 概述：${alarm_summary}\n - 生成時間：${alarm_active_at}\n - 詳情：${alarm_description}\n - OCP 鏈接：${alarm_url}\n “}
aggregation_message_template_i18n: {“aggregation_message_template_zh_tw”:“OCP 告警通知 ${alarm_name}\n - 級別：${alarm_level}\n - 告警數量：${alarm_count}\n - 告警分类：${alarm_group}\n - 聚合分組：${alarm_group_by}\n - 告警對象：${alarm_target}\n - 生成時間：${alarm_active_at}\n “,“aggregation_message_template_en_us”:“OCP Alert Notifications ${alarm_name}\n - Level: ${alarm_level}\n - Alerts: ${alarm_count}\n - Alerts group: ${alarm_group}\n - Aggregation group: ${alarm_group_by}\n - Alert object: ${alarm_target}\n - Generation time: ${alarm_active_at} \n “,“aggregation_message_template_zh_cn”:“OCP 告警通知 ${alarm_name}\n - 级别：${alarm_level}\n - 告警数量：${alarm_count}\n - 告警分类：${alarm_group}\n - 聚合分组：${alarm_group_by}\n - 告警对象：${alarm_target}\n - 生成时间：${alarm_active_at}\n “}
recover_message_template_i18n: {“recover_message_template_en_us”:“OCP Alarm Recover Notification ${alarm_name}\n - Target: ${alarm_target}\n - Details: ${alarm_description}\n - Recovered at: ${alarm_resolved_at} \n “,“recover_message_template_zh_tw”:“OCP 警示恢復通知 ${alarm_name}\n - 警示對象：${alarm_target}\n - 警示詳情：${alarm_description}\n - 恢復時間：${alarm_resolved_at}\n “,“recover_message_template_zh_cn”:”【恢复通知】OCP 告警 ${alarm_name}\n - 告警对象：${alarm_target}\n - 告警详情：${alarm_description}\n - 恢复时间：${alarm_resolved_at}\n “}
is_enabled: 1
*************************** 2. row ***************************
id: 2
gmt_create: 2024-12-12 15:39:47
gmt_modified: 2025-04-21 11:28:46
update_time: 2025-04-10 16:28:42
created_by: admin
modified_by: admin
name: NULL
is_default: 0
last_sent_at: 2025-04-21 11:28:45
channel_type: Script
recipient_addr_source: uid
is_group_channel: 0
message_template1: NULL
message_template2: NULL
channel_settings_json: {“scriptChannel”:{“scriptContent”:”#!/usr/bin/env bash\nfunction send() {\n token=‘XXX’\n id=‘XXX’\n URL=“https://XXX/XXX”\n\n # if message is json format, use “’”${message}”’” or “${message}”, do not wrapper a new json body\n # if message is not json format, use “${message}”\n # do not use ‘${message}’\n # print the response to stderr or stdout, which will be validated if success, validate stderr firstly.\n #curl -s -X POST ${URL} -H ‘Content-Type: application/json’ -d '{“msgtype”:“text”,“text”:{“content”:”’”${message}”’”}}’\n curl -s -X POST ${URL} -d id=”${id}” -d text=”${message}”\n return $?\n}\n\n# invoke function to\nsend”,“scriptContentEnabled”:true}}
is_aggregation_enabled: 1
aggregation_message_template1: NULL
aggregation_message_template2: NULL
aggregation_rule_json: {“aggregateIntervalSeconds”:300,“aggregateWaitSeconds”:30,“repeatIntervalSeconds”:600}
name2: NULL
name3: NULL
message_template3: NULL
aggregation_message_template3: NULL
message_language: zh_CN
response_validation: {“ok”:true}
name_i18n: {“name_zh_tw”:“it_ob_tg”,“name_zh_cn”:“it_ob_m2”}
message_template_i18n: {“message_template_en_us”:"OCP Alert Notifications ${alarm_name}\n - Level: ${alarm_level}\n - Alert target: ${alarm_target}\n - Summary: ${alarm_summary}\n - Generation time: ${alarm_active_at}\n - Description: ${alarm_description}\n - OCP URL: ${alarm_url}\n ",“message_template_zh_cn”:"OCP 告警通知 ${alarm_name}\n - 级别：${alarm_level}\n - 告警对象：${alarm_target}\n - 概述：${alarm_summary}\n - 生成时间：${alarm_active_at}\n - 详情：${alarm_description}\n - OCP 链接：${alarm_url}\n ",“message_template_zh_tw”:"OCP 告警通知 ${alarm_name}\n - 級別：${alarm_level}\n - 告警對象：${alarm_target}\n - 概述：${alarm_summary}\n - 生成時間：${alarm_active_at}\n - 詳情：${alarm_description}\n - OCP 鏈接：${alarm_url}\n "}
aggregation_message_template_i18n: {“aggregation_message_template_zh_tw”:"OCP 告警通知 ${alarm_name}\n - 級別：${alarm_level}\n - 告警數量：${alarm_count}\n - 告警分类：${alarm_group}\n - 聚合分組：${alarm_group_by}\n - 告警對象：${alarm_target}\n - 生成時間：${alarm_active_at}\n ",“aggregation_message_template_en_us”:"OCP Alert Notifications ${alarm_name}\n - Level: ${alarm_level}\n - Alerts: ${alarm_count}\n - Alerts group: ${alarm_group}\n - Aggregation group: ${alarm_group_by}\n - Alert object: ${alarm_target}\n - Generation time: ${alarm_active_at} \n ",“aggregation_message_template_zh_cn”:"OCP 告警通知 ${alarm_name}\n - 级别：${alarm_level}\n - 告警数量：${alarm_count}\n - 告警分类：${alarm_group}\n - 聚合分组：${alarm_group_by}\n - 告警对象：${alarm_target}\n - 生成时间：${alarm_active_at}\n "}
recover_message_template_i18n: {“recover_message_template_en_us”:"OCP Alarm Recover Notification ${alarm_name}\n - Target: ${alarm_target}\n - Details: ${alarm_description}\n - Recovered at: ${alarm_resolved_at} \n ",“recover_message_template_zh_tw”:"OCP 警示恢復通知 ${alarm_name}\n - 警示對象：${alarm_target}\n - 警示詳情：${alarm_description}\n - 恢復時間：${alarm_resolved_at}\n “,“recover_message_template_zh_cn”:”【恢复通知】OCP 告警 ${alarm_name}\n - 告警对象：${alarm_target}\n - 告警详情：${alarm_description}\n - 恢复时间：${alarm_resolved_at}\n "}
is_enabled: 1
2 rows in set (0.000 sec)

这个内容没有什么异常，OCP界面里就有的，有两个通道配置，一个是邮件的，一个是shell脚本去触发webhook

旭辉 · 2025 年4 月 22 日 17:40

配置为1个通道再试下

AntTech_GASIPE · 2025 年4 月 22 日 20:04

下午有删掉一个，只留一个报警通道，结果还是一样的。

另外如果报警信息有推送到两个通道，也都是会收到重复的恢复信息的。等于会有4条恢复通知。

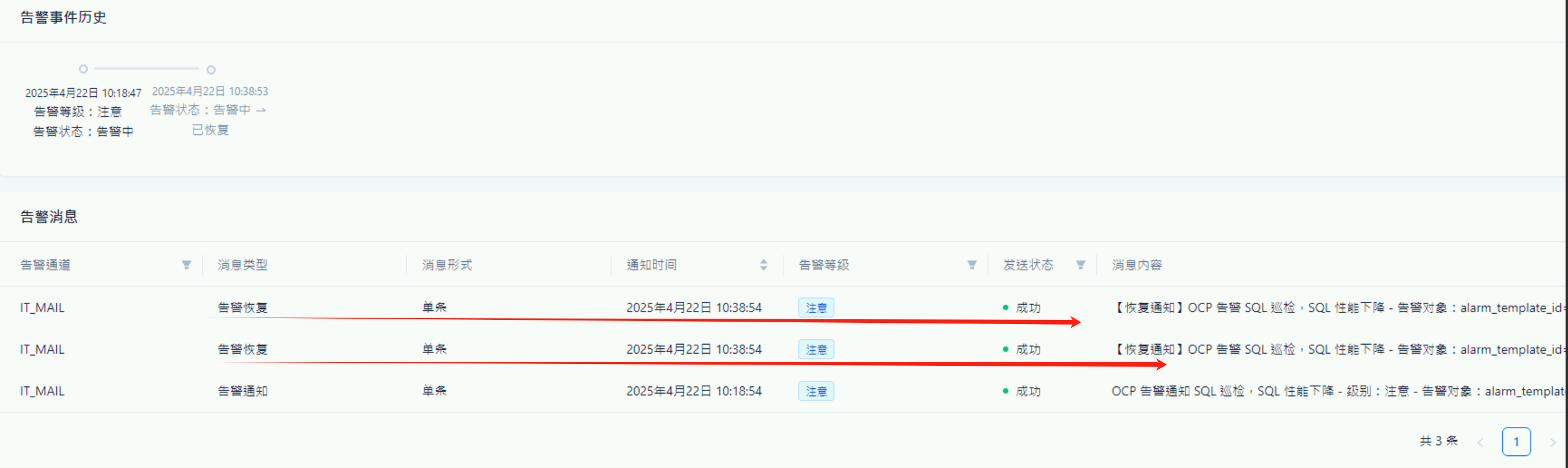

如下图，告警通道为空的，是刚刚删掉的那个：

旭辉 · 2025 年4 月 23 日 09:35

好的，我们继续看下

旭辉 · 2025 年4 月 23 日 09:37

包含这个时间的ocp-server.log和monagent.log，mgragent.log 麻烦提供下

AntTech_ZT39FF · 2025 年4 月 23 日 10:38

我这边也出现相同问题，告警恢复发2遍
