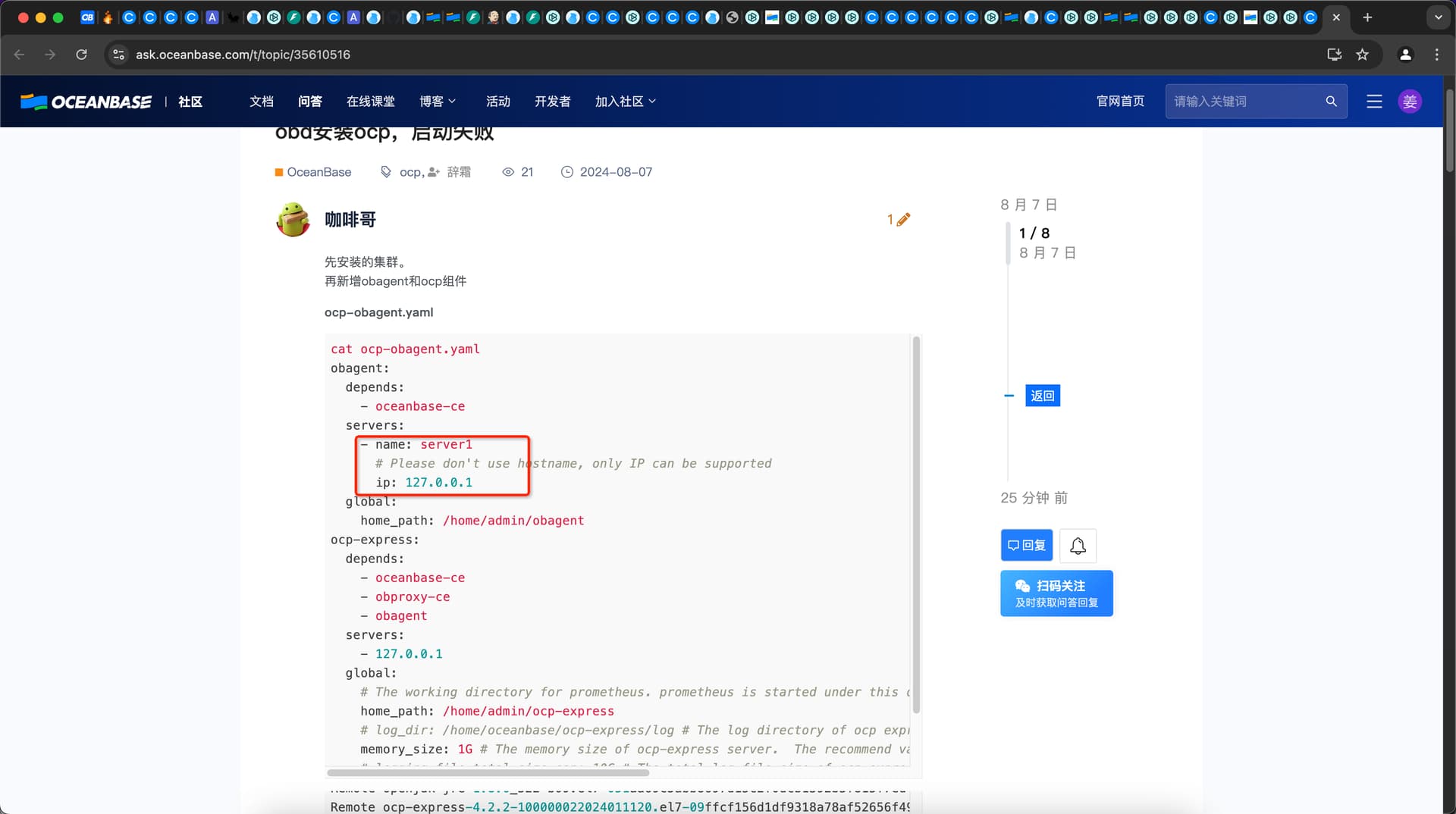

cat ocp-obagent.yaml
obagent:
depends:
- oceanbase-ce
servers:
- name: server1
# Please don't use hostname, only IP can be supported
ip: 127.0.0.1
global:
home_path: /home/admin/obagent
ocp-express:
depends:
- oceanbase-ce
- obproxy-ce
- obagent
servers:
- 127.0.0.1
global:
# The working directory for prometheus. prometheus is started under this directory. This is a required field.
home_path: /home/admin/ocp-express
# log_dir: /home/oceanbase/ocp-express/log # The log directory of ocp express server. The default value is {home_path}/log.
memory_size: 1G # The memory size of ocp-express server. The recommend value is 512MB * (expect node num + expect tenant num) * 60MB.
# logging_file_total_size_cap: 10G # The total log file size of ocp-express server
# logging_file_max_history: 1 # The maximum of retention days the log archive log files to keep. The default value is unlimited
[admin@z ~]$ obd cluster component add obdemo -c ocp-obagent.yaml
Get local repositories and plugins ok
Cluster status check ok
Get added repositories and plugins ok
Open ssh connection ok
Generate observer configuration ok
Connect to observer 127.0.0.1:2881 ok
Create tenant ocp_meta ok
+-------------------------------------------------------------------------------------------+
| Packages |
+-------------+---------+------------------------+------------------------------------------+
| Repository | Version | Release | Md5 |
+-------------+---------+------------------------+------------------------------------------+
| obagent | 4.2.2 | 100000042024011120.el7 | 19739a07a12eab736aff86ecf357b1ae660b554e |
| ocp-express | 4.2.2 | 100000022024011120.el7 | 09ffcf156d1df9318a78af52656f499d2315e3f7 |
+-------------+---------+------------------------+------------------------------------------+
Repository integrity check ok
Load param plugin ok
Parameter check ok
Initializes obagent work home ok
Initializes ocp-express work home ok
Remote obagent-4.2.2-100000042024011120.el7-19739a07a12eab736aff86ecf357b1ae660b554e repository install ok
Remote obagent-4.2.2-100000042024011120.el7-19739a07a12eab736aff86ecf357b1ae660b554e repository lib check ok
Remote ocp-express-4.2.2-100000022024011120.el7-09ffcf156d1df9318a78af52656f499d2315e3f7 repository install ok
Remote ocp-express-4.2.2-100000022024011120.el7-09ffcf156d1df9318a78af52656f499d2315e3f7 repository lib check !!
Try to get lib-repository
Remote openjdk-jre-1.8.0_322-b09.el7-051aa69c5abb8697d15c2f0dcb1392b3f815f7ed repository install ok
Remote ocp-express-4.2.2-100000022024011120.el7-09ffcf156d1df9318a78af52656f499d2315e3f7 repository lib check ok
Search plugins ok
Load cluster param plugin ok
Check before start obagent ok
Check before start ocp-express ok
Start obagent ok
obagent program health check ok
Connect to Obagent ok
Start ocp-express ok
[ERROR] failed to start 127.0.0.1 ocp-express
[ERROR] ocp-express start failed
+-------------------------------------------------------------------+
| obagent |
+----------------+--------------------+--------------------+--------+
| ip | mgragent_http_port | monagent_http_port | status |
+----------------+--------------------+--------------------+--------+
| 1xxxx | 8089 | 8088 | active |
+----------------+--------------------+--------------------+--------+
See https://www.oceanbase.com/product/ob-deployer/error-codes .
Trace ID: 814dd23c-549b-11ef-9b15-6c92bfce2490
If you want to view detailed obd logs, please run: obd display-trace 814dd23c-549b-11ef-9b15-6c92bfce2490
ocp 日志有报错：
less /home/admin/ocp-express/log/ocp-express.log
Error starting ApplicationContext. To display the conditions report re-run your application with 'debug' enabled.
2024-08-07 17:01:22.146 INFO 18577 --- [main,,] c.o.o.b.spring.BootstrapRunListener : BootstrapRunListener failed
2024-08-07 17:01:22.201 ERROR 18577 --- [main,,] c.o.ocp.analyzer.OcpFailureAnalyzer : OCP startup check failed with cause:
org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'ocpExpressInitializer': Invocation of init method failed; nested exception is java.lang.RuntimeException: Init by spring config files failed, please check config file format
at org.springframework.beans.factory.annotation.InitDestroyAnnotationBeanPostProcessor.postProcessBeforeInitialization(InitDestroyAnnotationBeanPostProcessor.java:160) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.applyBeanPostProcessorsBeforeInitialization(AbstractAutowireCapableBeanFactory.java:440) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1796) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:620) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:955) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:920) ~[spring-context-5.3.27.jar!/:5.3.27]
at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:583) ~[spring-context-5.3.27.jar!/:5.3.27]
at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:147) ~[spring-boot-2.7.12.jar!/:2.7.12]
at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:731) [spring-boot-2.7.12.jar!/:2.7.12]
at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:408) [spring-boot-2.7.12.jar!/:2.7.12]
at org.springframework.boot.SpringApplication.run(SpringApplication.java:307) [spring-boot-2.7.12.jar!/:2.7.12]
at org.springframework.boot.SpringApplication.run(SpringApplication.java:1303) [spring-boot-2.7.12.jar!/:2.7.12]
at org.springframework.boot.SpringApplication.run(SpringApplication.java:1292) [spring-boot-2.7.12.jar!/:2.7.12]
at com.oceanbase.ocp.OcpExpressApplication.main(OcpExpressApplication.java:21) [classes!/:4.2.2-20240108]
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method) ~[na:1.8.0_332]
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62) ~[na:1.8.0_332]
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) ~[na:1.8.0_332]
at java.lang.reflect.Method.invoke(Method.java:498) ~[na:1.8.0_332]
at org.springframework.boot.loader.MainMethodRunner.run(MainMethodRunner.java:49) [ocp-express-server.jar:4.2.2-20240108]
at org.springframework.boot.loader.Launcher.launch(Launcher.java:107) [ocp-express-server.jar:4.2.2-20240108]
at org.springframework.boot.loader.Launcher.launch(Launcher.java:58) [ocp-express-server.jar:4.2.2-20240108]
at org.springframework.boot.loader.PropertiesLauncher.main(PropertiesLauncher.java:467) [ocp-express-server.jar:4.2.2-20240108]
Caused by: java.lang.RuntimeException: Init by spring config files failed, please check config file format
2024-08-07 18:11:20.384 ERROR 18577 --- [pool-schedule-monitor-meta-1,,] c.o.o.m.helper.MonitorMetaMapContainer : loadMetricExpr error.
org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'dataSourceScriptDatabaseInitializer' defined in class path resource [org/springframework/boo
t/autoconfigure/sql/init/DataSourceInitializationConfiguration.class]: Unsatisfied dependency expressed through method 'dataSourceScriptDatabaseInitializer' parameter 0; nested exception is
org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'dataSource' defined in class path resource [com/oceanbase/ocp/config/datasource/MetaDbConfiguration.
class]: Initialization of bean failed; nested exception is org.springframework.boot.context.properties.ConfigurationPropertiesBindException: Error creating bean with name 'spring.datasource
-org.springframework.boot.autoconfigure.jdbc.DataSourceProperties': Could not bind properties to 'DataSourceProperties' : prefix=spring.datasource, ignoreInvalidFields=false, ignoreUnknownF
ields=true; nested exception is java.lang.IllegalStateException: org.springframework.context.annotation.AnnotationConfigApplicationContext@31610302 has been closed already
at org.springframework.beans.factory.support.ConstructorResolver.createArgumentArray(ConstructorResolver.java:800) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:541) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1352) ~[spring-beans-5.3.27.jar
!/:5.3.27]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1195) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:582) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:542) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:335) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:333) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:322) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:208) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.beans.factory.support.DefaultListableBeanFactory$1.orderedStream(DefaultListableBeanFactory.java:481) ~[spring-beans-5.3.27.jar!/:5.3.27]
at org.springframework.dao.support.PersistenceExceptionTranslationInterceptor.detectPersistenceExceptionTranslators(PersistenceExceptionTranslationInterceptor.java:167) ~[spring-tx-
5.3.27.jar!/:5.3.27]
at org.springframework.dao.support.PersistenceExceptionTranslationInterceptor.invoke(PersistenceExceptionTranslationInterceptor.java:149) ~[spring-tx-5.3.27.jar!/:5.3.27]
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186) ~[spring-aop-5.3.27.jar!/:5.3.27]
at org.springframework.data.jpa.repository.support.CrudMethodMetadataPostProcessor$CrudMethodMetadataPopulatingMethodInterceptor.invoke(CrudMethodMetadataPostProcessor.java:174) ~[s
pring-data-jpa-2.7.12.jar!/:2.7.12]
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186) ~[spring-aop-5.3.27.jar!/:5.3.27]
at org.springframework.aop.interceptor.ExposeInvocationInterceptor.invoke(ExposeInvocationInterceptor.java:97) ~[spring-aop-5.3.27.jar!/:5.3.27]
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186) ~[spring-aop-5.3.27.jar!/:5.3.27]
at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:220) ~[spring-aop-5.3.27.jar!/:5.3.27]
obagent:
depends:
- oceanbase-ce
servers:
- 127.0.0.1
global:
home_path: /home/admin/obagent
ocp-express:
depends:
- oceanbase-ce
- obproxy-ce
- obagent
servers:
- 127.0.0.1
global:
# The working directory for prometheus. prometheus is started under this directory. This is a required field.
home_path: /home/admin/ocp-express
# log_dir: /home/oceanbase/ocp-express/log # The log directory of ocp express server. The default value is {home_path}/log.
memory_size: 1G # The memory size of ocp-express server. The recommend value is 512MB * (expect node num + expect tenant num) * 60MB.
# logging_file_total_size_cap: 10G # The total log file size of ocp-express server
# logging_file_max_history: 1 # The maximum of retention days the log archive log files to keep. The default value is unlimited
