全局索引+一级分区表写入时延不稳定，频发ERROR 4012: Transaction is timeout包错

OceanBase 技术问题
#1

【 使用环境 】生产环境
【 OB or 其他组件 】OceanBase
【 使用版本 】OceanBase-3.1.4 + OBProxy-3.2.3
【问题描述】使用key 对主键做分区，并创建有两个全区索引，单条记录1.4K左右，写入时延极度不稳定，从几毫秒跃升至数秒然后大量超时（超过100秒），最后集群进入异常状态。想咨询一下是什么原因导致的？通过Traceid捕捉到了一条超时SQL的observer日志，想请社区的专家帮忙分析一下什么阶段的耗时导致最终超时回滚？
【复现路径】
【附件及日志】

45192:[2024-04-28 09:56:44.591397] TRACE [TRACE]ob_trans_ctx.cpp:528 [981][1506][YB42AC15451F-000616FA064F13CA] [lt=16] [dc=0] [slow trans] (TRACE=begin_ts=1714269232842902 2024-04-28 01:53:52.842902|[init] u=0 arg1:140333578098768, ctx_type:"participant", trans_type:2, trans_id:{hash:4994038682938037139, inc:149347624, addr:{ip:"172.21.69.32", port:2882}, t:1714269232844655}, pkey:{tid:1100611139453777, partition_id:23, part_cnt:0}, arg1:false, uref:1073741824|[start_trans] u=5 ret:0, left_time:100001699, uref:1073741825|[snapshot] u=2 snapshot:1714269232814703, uref:1073741825|[update_gts] u=0 ret:0, sql_no:4294967297, uref:1073741825, snapshot:1714269232814703, tenant_id:1001|[start_task] u=1 ret:0, sql_no:4294967297, uref:1073741825, need_update_gts:true|[end_task] u=443 ret:0, is_rollback:false, uref:1073741825|[set_stc] u=579 stc:1714269232843917|[wait_get_gts] u=12 log_type:3|[alloc_logid_ts] u=0 ret:-4023, log_id:18446744073709551615, tenant_id:1001, uref:1073741826, used:12|[log_pending] u=1 logging:0, pending:1, uref:1073741826|[inc_submit_log_count] u=0 logging:1, pending:1, uref:1073741826|[handle_message] u=0 ret:0, msg_type:240, uref:1073741826|[log_pending_cb] u=103 logging:1, pending:0, uref:1073741825|[dec_submit_log_count] u=1 logging:0, pending:0, uref:1073741825|[alloc_logid_ts] u=0 ret:0, log_id:18446744073709551615, tenant_id:1001, uref:1073741825, used:0|[prepare] u=0 ret:0, trans_version:-1, uref:1073741825|[inc_submit_log_count] u=39 logging:1, pending:0, uref:1073741825|[submit_log] u=0 ret:0, uref:1073741825, timeguard:{click:[0, 11, 27]}|[retry_submit_log] u=1 ret:0, log_type:3, uref:1073741825|[get_gts_callback] u=0 ret:0, srr:1714269232843934, gts:1714269232845452|[dec_submit_log_count] u=230 logging:0, pending:0, uref:1073741825|[on_sync_log_succ] u=8 ret:0, log_type:3, log_id:20363742, uref:1073741825|[handle_timeout] u=102496 ret:0, used:{click:[0, 0, 19]}, uref:1073741825|[handle_timeout] u=206868 ret:0, used:{click:[0, 1, 21]}, uref:1073741825|[handle_timeout] u=403843 ret:0, used:{click:[1, 0, 14]}, uref:1073741825|[handle_timeout] u=803107 ret:0, used:{click:[0, 0, 12]}, uref:1073741825|[handle_timeout] u=1605895 ret:0, used:{click:[0, 0, 12]}, uref:1073741825|[update_trans_version] u=583556 trans_version:1714269236346115, uref:1073741825|[handle_message] u=1 ret:0, msg_type:260, uref:1073741825|[update_trans_version] u=403 trans_version:1714269236346115, uref:1073741825|[calc_checksum_by_commit] u=8 ret:0, checksum:37245167, checksum_log_ts:9223372036854775807|[inc_submit_log_count] u=20 logging:1, pending:0, uref:1073741825|[submit_log] u=0 ret:0, uref:1073741825, timeguard:{click:[1, 2, 17]}|[handle_message] u=1 ret:0, msg_type:280, uref:1073741825|[dec_submit_log_count] u=223 logging:0, pending:0, uref:1073741825|[on_sync_log_succ] u=15 ret:0, log_type:4, log_id:20363743, uref:1073741825|[handle_timeout] u=2421270 ret:0, used:{click:[0, 0, 17]}, uref:1073741825|[handle_timeout] u=3005506 ret:0, used:{click:[1, 0, 15]}, uref:1073741825|[handle_timeout] u=3006016 ret:0, used:{click:[1, 0, 17]}, uref:1073741825|[handle_timeout] u=3004335 ret:0, used:{click:[1, 0, 32]}, uref:1073741825|[handle_timeout] u=3005535 ret:0, used:{click:[0, 0, 20]}, uref:1073741825|[handle_timeout] u=3003326 ret:0, used:{click:[1, 0, 21]}, uref:1073741825|[handle_timeout] u=3007427 |[handle_timeout] u=3002124 |[handle_timeout] u=3007463 |[handle_timeout] u=3001826 |[handle_timeout] u=3005658 |[handle_timeout] u=3004132 |[handle_timeout] u=3005294 |[handle_timeout] u=3004780 |[handle_timeout] u=3009545 |[handle_timeout] u=3000906 |[handle_timeout] u=3004201 |[handle_timeout] u=3009490 |[handle_timeout] u=3004309 |[handle_timeout] u=3003531 |[handle_timeout] u=3004371 |[handle_timeout] u=3004409 |[handle_timeout] u=3005371 |[handle_timeout] u=3004178 |[handle_timeout] u=3008842 |[handle_timeout] u=3004316 |[handle_timeout] u=3003959 |[handle_timeout] u=3004834 |[handle_timeout] u=3004129 |[handle_timeout] u=3005264 |[handle_timeout] u=3003757 |[handle_timeout] u=3004236 |[handle_timeout] u=3005001 |[handle_timeout] u=3009475 |[handle_timeout] u=3004796 |[handle_timeout] u=3004877 |[handle_timeout] u=3005358 |[handle_timeout] u=3005361 |[handle_timeout] u=3004563 |[handle_timeout] u=3005136 |[handle_timeout] u=3004391 |[handle_timeout] u=3005077 |[handle_timeout] u=3005876 |[handle_timeout] u=3009352 |[handle_timeout] u=3004577 |[handle_timeout] u=3004552 |[handle_timeout] u=3004975 |[handle_timeout] u=3004929 |[handle_timeout] u=3004093 |[handle_timeout] u=3004518 |[handle_timeout] u=3004643 |[handle_timeout] u=3004716 |[handle_timeout] u=3005369 |[handle_timeout] u=3004559 |[handle_timeout] u=3004271 |[handle_timeout] u=3009517 |[inc_submit_log_count] u=335831 logging:1, pending:0, uref:1073741825|[submit_log] u=1 |[handle_message] u=1 |[dec_submit_log_count] u=359 |[exiting] u=3 |[on_sync_log_succ] u=18 |[destroy] u=15 arg1:140333578100144|total_timeu=171748411)
48602:[2024-04-28 09:59:45.444684] TRACE [TRACE]ob_trans_ctx.cpp:528 [1303][2150][YB42AC15451E-000616FB2A1E140A] [lt=9] [dc=0] [slow trans] (TRACE=begin_ts=1714269232843914 2024-04-28 01:53:52.843914|[init] u=0 arg1:140334620860352, ctx_type:"coordinator", trans_type:2, trans_id:{hash:4994038682938037139, inc:149347624, addr:{ip:"172.21.69.32", port:2882}, t:1714269232844655}, pkey:{tid:1100611139453777, partition_id:23, part_cnt:0}, arg1:false, uref:1073741824|[cons_context] u=3 ret:0, read_only:false, uref:1073741825|[set_stc] u=0 stc:1714269232843917|[handle_message] u=12 ret:0, id1:-1, id2:-1, msg_type:0, sender:{tid:1000, partition_id:1000, part_cnt:1000}, uref:1073741825|[update_trans_version] u=401 trans_version:1714269232845452, uref:1073741825|[handle_message] u=1 ret:0, msg_type:250, uref:1073741825|[update_trans_version] u=93 trans_version:1714269232836542, uref:1073741825|[handle_message] u=1 ret:0, msg_type:250, uref:1073741825|[handle_timeout] u=102376 ret:0, total_count:1, uref:1073741825|[handle_message] u=27 ret:0, msg_type:250, uref:1073741825|[handle_message] u=2161 ret:0, msg_type:250, uref:1073741825|[handle_timeout] u=204677 ret:0, total_count:1, uref:1073741825|[handle_message] u=32 ret:0, msg_type:250, uref:1073741825|[handle_message] u=2340 ret:0, msg_type:250, uref:1073741825|[handle_timeout] u=401478 ret:0, total_count:1, uref:1073741825|[handle_message] u=22 ret:0, msg_type:250, uref:1073741825|[handle_message] u=2178 ret:0, msg_type:250, uref:1073741825|[handle_timeout] u=800912 ret:0, total_count:1, uref:1073741825|[handle_message] u=17 ret:0, msg_type:250, uref:1073741825|[handle_message] u=6131 ret:0, msg_type:250, uref:1073741825|[handle_message] u=1483265 ret:0, id1:1714269234359979, id2:-1, msg_type:0, sender:{tid:1000, partition_id:1000, part_cnt:1000}, uref:1073741825|[handle_timeout] u=116481 ret:0, total_count:1, uref:1073741825|[handle_message] u=17 ret:0, msg_type:250, uref:1073741825|[handle_message] u=5380 ret:0, msg_type:250, uref:1073741825|[update_trans_version] u=578164 trans_version:1714269236346115, uref:1073741825|[handle_message] u=7 ret:0, msg_type:250, uref:1073741825|[handle_message] u=4 ret:0, msg_type:270, uref:1073741826|[response_scheduler] u=386 ret:0, scheduler:{ip:"172.21.69.32", port:2882}, version:1714269236346115, publish_version:1714269236493473, msg_type:1, uref:1073741825|[handle_message] u=13 ret:0, msg_type:270, uref:1073741825|[handle_message] u=273 ret:0, msg_type:290, uref:1073741825|[handle_message] u=569 ret:0, msg_type:290, uref:1073741825|[handle_timeout] u=107195 ret:0, total_count:1, uref:1073741825|[handle_timeout] u=201944 ret:0, total_count:1, uref:1073741825|[handle_timeout] u=409124 ret:0, total_count:1, uref:1073741825|[handle_timeout] u=803164 ret:0, total_count:1, uref:1073741825|[handle_message] u=899277 ret:0, msg_type:290, uref:1073741825|[handle_message] u=4907 ret:0, msg_type:290, uref:1073741825|[handle_timeout] u=702375 ret:0, total_count:1, uref:1073741825|[handle_message] u=2298222 ret:0, msg_type:290, uref:1073741825|[handle_message] u=3578 ret:0, msg_type:290, uref:1073741825|[handle_timeout] u=703379 ret:0, total_count:1, uref:1073741825|[handle_message] u=2299061 ret:0, msg_type:290, uref:1073741825|[handle_message] u=773 ret:0, msg_type:290, uref:1073741825|[handle_timeout] u=701208 ret:0, total_count:1, uref:1073741825|[handle_message] u=2302361 ret:0, msg_type:290, uref:1073741825|[handle_message] u=5732 ret:0, msg_type:290, uref:1073741825|[handle_timeout] u=696691 ret:0, total_count:1, uref:1073741825|[handle_message] u=2303109 ret:0, msg_type:290, uref:1073741825|[handle_message] u=4128 ret:0, msg_type:290, uref:1073741825|[handle_timeout] u=697562 ret:0, total_count:1, uref:1073741825|[handle_message] u=2301639 ret:0, msg_type:290, uref:1073741825|[handle_message] u=3557 ret:0, msg_type:290, uref:1073741825|[handle_timeout] u=702794 ret:0, total_count:1, uref:1073741825|[handle_message] u=2300946 ret:0, msg_type:290, uref:1073741825|[handle_message] u=129 ret:0, msg_type:290, uref:1073741825|[handle_timeout] u=701421 |[handle_message] u=2300707 |[handle_message] u=2608 |[handle_timeout] u=703760 |[handle_message] u=2301093 |[handle_message] u=3857 |[handle_timeout] u=702246 |[handle_message] u=2295722 |[handle_message] u=5632 |[handle_timeout] u=700858 |[handle_message] u=2299163 |[handle_message] u=4992 |[handle_timeout] u=701805 |[handle_message] u=2297338 |[handle_message] u=5628 |[handle_timeout] u=701496 |[handle_message] u=2298168 |[handle_message] u=5100 |[handle_timeout] u=701988 |[handle_message] u=2297693 |[handle_message] u=4510 |[handle_timeout] u=702429 |[handle_message] u=2301283 |[handle_message] u=1319 |[handle_timeout] u=701781 |[handle_message] u=2299133 |[handle_message] u=6539 |[handle_timeout] u=700524 |[handle_message] u=2297133 |[handle_message] u=6747 |[handle_timeout] u=699850 |[handle_message] u=2302893 |[handle_message] u=2120 |[handle_timeout] u=699850 |[handle_message] u=2302342 |[handle_message] u=1894 |[handle_timeout] u=704226 |[handle_message] u=2297408 |[handle_message] u=2952 |[handle_timeout] u=708627 |[handle_message] u=2292792 |[handle_message] u=4255 |[handle_timeout] u=707771 |[handle_message] u=2292384 |[destroy] u=283368347 |total_timeu=352600660 DROPPED_EVENTS=168)
#3

从提供的信息中还看不太出来原因，延时不稳定的因素比较多。你的环境是ocp部署的吗？把监控面板的tps/qps/队列等待事件等发出来看看

#4

这套环境不是OCP部署的。但我从gv$sql_audit看不到超时SQL的具体执行情况，这一点也很奇怪。
非超时的SQL执行时间如下：

 ELAPSED_TIME: 57824801
               NET_TIME: 0
          NET_WAIT_TIME: 0
             QUEUE_TIME: 23
            DECODE_TIME: 0
          GET_PLAN_TIME: 33
           EXECUTE_TIME: 1938

上文提供的日志里面有一些关键字，比如【log_pending】，这种也不能大致推断原因么？

#5

超时SQL看不到是因为这条SQL执行就是失败的，没有进入sql_audit中

#6

这个我理解的，所以也没办法从sql_audit中看到是哪一步耗时过久。另外发现只要把全局索引删了，同等并发和TPS的情况下，超时的现象就几乎不再发生了。

#7

表结构方便发一下吗

#8
CREATE TABLE `tbl_test` (
  `pk` char(21) COLLATE utf8mb4_bin NOT NULL DEFAULT '',
  `col1` char(11) COLLATE utf8mb4_bin NOT NULL DEFAULT '',
  `col2` char(21) COLLATE utf8mb4_bin NOT NULL DEFAULT '',
  `col3` varchar(90) COLLATE utf8mb4_bin NOT NULL DEFAULT '',
  `col4` varchar(15) COLLATE utf8mb4_bin NOT NULL DEFAULT '',
  .....
  `col12` datetime(6) NOT NULL DEFAULT CURRENT_TIMESTAMP(6),
  PRIMARY KEY (`pk`),
  KEY `ind_i1` (`col12`) BLOCK_SIZE 16384 LOCAL,
  KEY `ind_i2` (`col2`) BLOCK_SIZE 16384 GLOBAL,
  KEY `ind_i3` (`col4`, `col3`) BLOCK_SIZE 16384 GLOBAL
) DEFAULT CHARSET = utf8mb4 COLLATE = utf8mb4_bin ROW_FORMAT = COMPACT COMPRESSION = 'zstd_1.3.8' REPLICA_NUM = 3 BLOCK_SIZE = 16384 USE_BLOOM_FILTER = FALSE TABLET_SIZE = 134217728 PCTFREE = 0
 partition by key(pk)
(partition p0,
partition p1,
partition p2,
partition p3,
partition p4,
partition p5,
partition p6,
partition p7,
partition p8,
partition p9,
partition p10,
.....
partition p128)

全区索引表是分区的

CREATE INDEX ind_tsonl_i3  ON tbl_test (col4, col3) GLOBAL PARTITION BY key(col3) partitions 6;
#9

观察到一个现象，当大量超时发生的时间段内，节点上的磁盘IO基本都是100%

#10

发生超时的时候时间上有规律吗，比如合并的时候？

#11

没有特定时间范围，一般数据写入任务发起后单条insert耗时都极短，然后逐步跃升直到超时，集群进入异常状态（一条insert语句都执行不了）。一段时间后，集群自动恢复，可以观察到IO已经正常。

#12

大量的IO怀疑和转储、合并有关联，你可以试试再比较慢的时候合并一下看是不是能变快

#13

合并完是能变快，但是实际使用的话不可能依赖频繁地合并来满足写入性能。测试的目标系统是个涉及联机的业务系统，大量出现超时肯定是不被接受的。
谢谢靖顺， 感觉3.x版本上的全局索引问题还是蛮大的，这边记录一下，看看社区有没有其他使用者也有遇到类似的状况。

#14

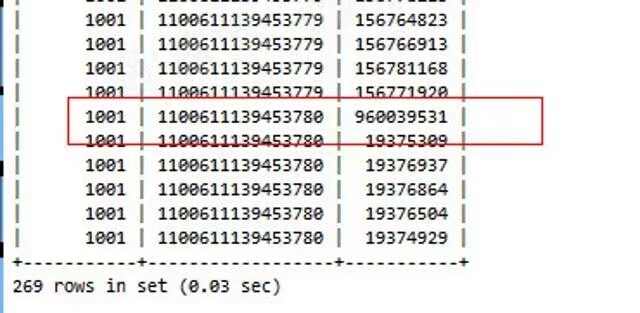

tmp1
这个问题排查清楚了，是因为测试团队在造数据的时候出现严重的全局索引数据倾斜，进而导致分布式事务提交的时候对应分区的clog滑动窗口出现大量超时
