分布式事务问题关于 Primary Zone 为单 Zone & 单 Unit

【 使用环境 】生产环境
【 OB 】
【 使用版本 】4.0
【问题描述】 我执行sysbench oltp_read_only 看到事务中有很多remote类型:

obclient [oceanbase]> select
    ->     plan_type, count(1)
    -> from GV$OB_SQL_AUDIT
    -> where
    ->     tenant_id = 1002
    ->     and request_time > time_to_usec('2023-02-20 15:39:21')
    -> group by plan_type;
+-----------+----------+
| plan_type | count(1) |
+-----------+----------+
|         1 |     2419 | # 1 代表 local, 表示当前语句所涉及的分区 Leader 与 Session 所在的机器相同
|         2 |     1488 | # 2 代表 remote, 表示当前语句所涉及的分区 Leader 与 Sesison 所在的机器不同
|         0 |     3509 | # 0 代表无 plan 的 SQL 语句,比如:set autocommit=0/1,commit 等
+-----------+----------+

查出OB为Primary Zone 为单 Zone & 单 Unit,obproxy.log并没有看到 fail to caculate partition id, just use tenant server:

# 查出OB为Primary Zone 为单 Zone & 单 Unit
obclient [oceanbase]> select tenant_name,concat(svr_ip,svr_port) as node,role,count(*) as cnt from __all_ls_meta_table t1,__all_tenant t2 where t1.role=1 and t1.tenant_id=t2.tenant_id group by t2.tenant_name,concat(t1.svr_ip,t1.svr_port),t1.role;
+-------------+-------------------+------+------+
| tenant_name | node              | role | cnt  |
+-------------+-------------------+------+------+
| META$1002   | 172.16.11.1342882 |    1 |    1 |
+-------------+-------------------+------+------+
1 row in set (0.012 sec)

obclient [oceanbase]> select * from oceanbase.DBA_OB_UNIT_CONFIGS \G
*************************** 1. row ***************************
UNIT_CONFIG_ID: 1
          NAME: sys_unit_config
   CREATE_TIME: 2023-01-17 16:04:27.292020
   MODIFY_TIME: 2023-01-17 16:04:27.292020
       MAX_CPU: 1
       MIN_CPU: 1
   MEMORY_SIZE: 2147483648
 LOG_DISK_SIZE: 2147483648
      MAX_IOPS: 10000
      MIN_IOPS: 10000
   IOPS_WEIGHT: 1
*************************** 2. row ***************************
UNIT_CONFIG_ID: 1001
          NAME: tenant1_unit
   CREATE_TIME: 2023-01-29 13:55:55.225187
   MODIFY_TIME: 2023-01-29 13:55:55.225187
       MAX_CPU: 15
       MIN_CPU: 15
   MEMORY_SIZE: 4294967296
 LOG_DISK_SIZE: 15032385536
      MAX_IOPS: 150000
      MIN_IOPS: 150000
   IOPS_WEIGHT: 15
2 rows in set (0.001 sec)

所以请问老师们是我查询错 ,并不是“ Primary Zone 为单 Zone & 单 Unit”,还是有其他异常?

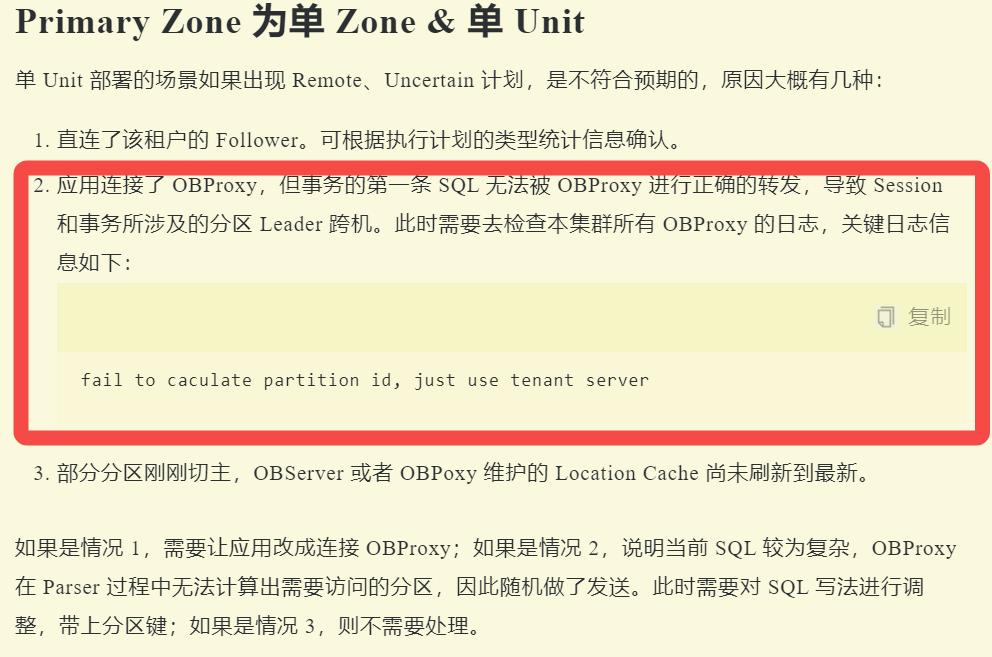

官方文档关于分布式事务的描述:
https://www.oceanbase.com/docs/community-observer-cn-10000000000901370#Primary%20Zone%20为单%20Zone%20%20多%20Unit

有老师帮忙解答吗?

Primary Zone 为单 Zone & 单 Unit 指的是集群只有一份副本,这个租户只有一个observer上有这个数据。你的环境是这样的吗?

我的集群是这样的

[root@172-16-11-134 ~]# obd cluster display obtest
Get local repositories and plugins ok
Open ssh connection ok
Cluster status check ok
Connect to observer ok
Wait for observer init ok
+-------------------------------------------------+
|                     observer                    |
+---------------+---------+------+-------+--------+
| ip            | version | port | zone  | status |
+---------------+---------+------+-------+--------+
| 172.16.11.134 | 4.0.0.0 | 2881 | zone1 | ACTIVE |
| 172.16.11.135 | 4.0.0.0 | 2881 | zone2 | ACTIVE |
| 172.16.11.136 | 4.0.0.0 | 2881 | zone3 | ACTIVE |
+---------------+---------+------+-------+--------+
obclient -h172.16.11.134 -P2881 -uroot -Doceanbase

Connect to obproxy ok
+-------------------------------------------------+
|                     obproxy                     |
+---------------+------+-----------------+--------+
| ip            | port | prometheus_port | status |
+---------------+------+-----------------+--------+
| 172.16.11.134 | 2883 | 2884            | active |
| 172.16.5.145  | 2883 | 2884            | active |
+---------------+------+-----------------+--------+
